Dreame VZ40 Pro Venting Hob

Flexible Cooking, Fresh Air.

Two Flexible Bridge Zones

Efficient Smoke Purification

Boost Heating Function

Integrated Hood‑Hob Design

Four‑Zone Precision Control System

Independent Timer Function

Easy to Remove,
Easy to Clean

Multi‑Safety Protection

Integrated Hood‑Hob Design

Two Flexible Bridge Zones

Boost Heating Function

Four‑Zone Precision Control System

Efficient Smoke Purification

Independent Timer Function

Easy to Remove,
Easy to Clean

Multi‑Safety Protection

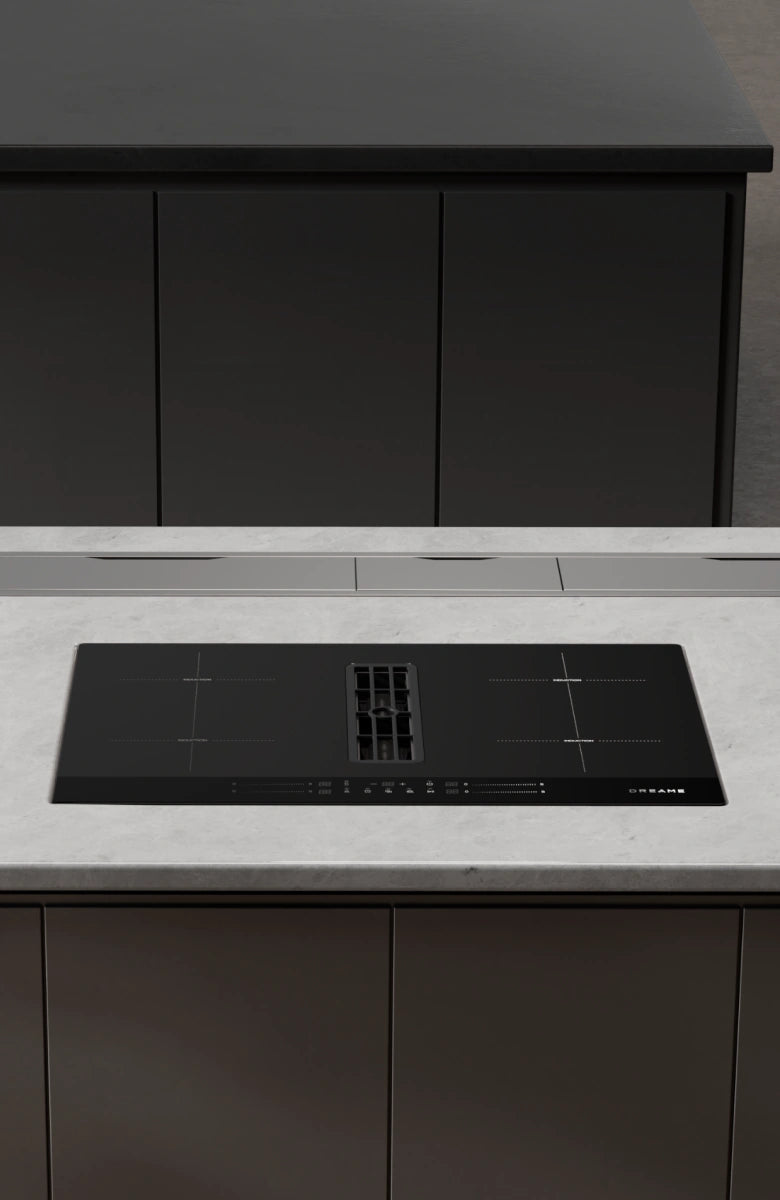

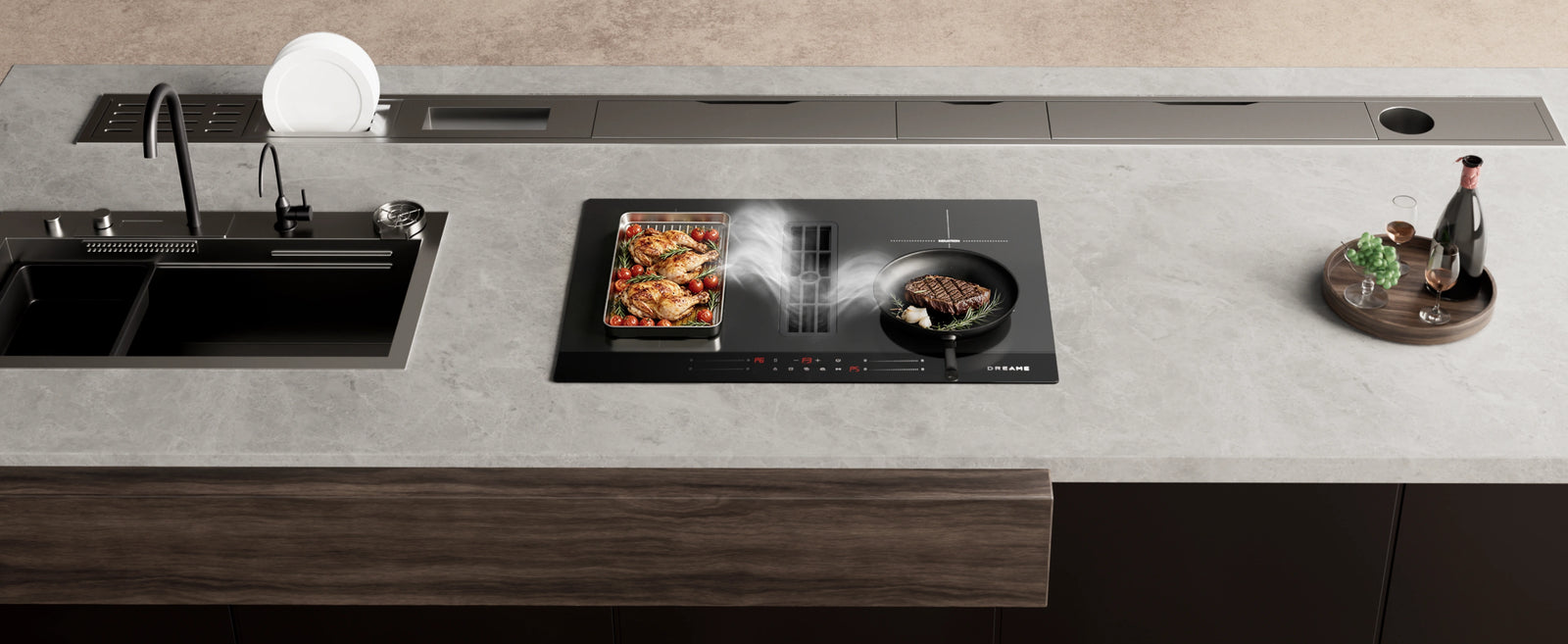

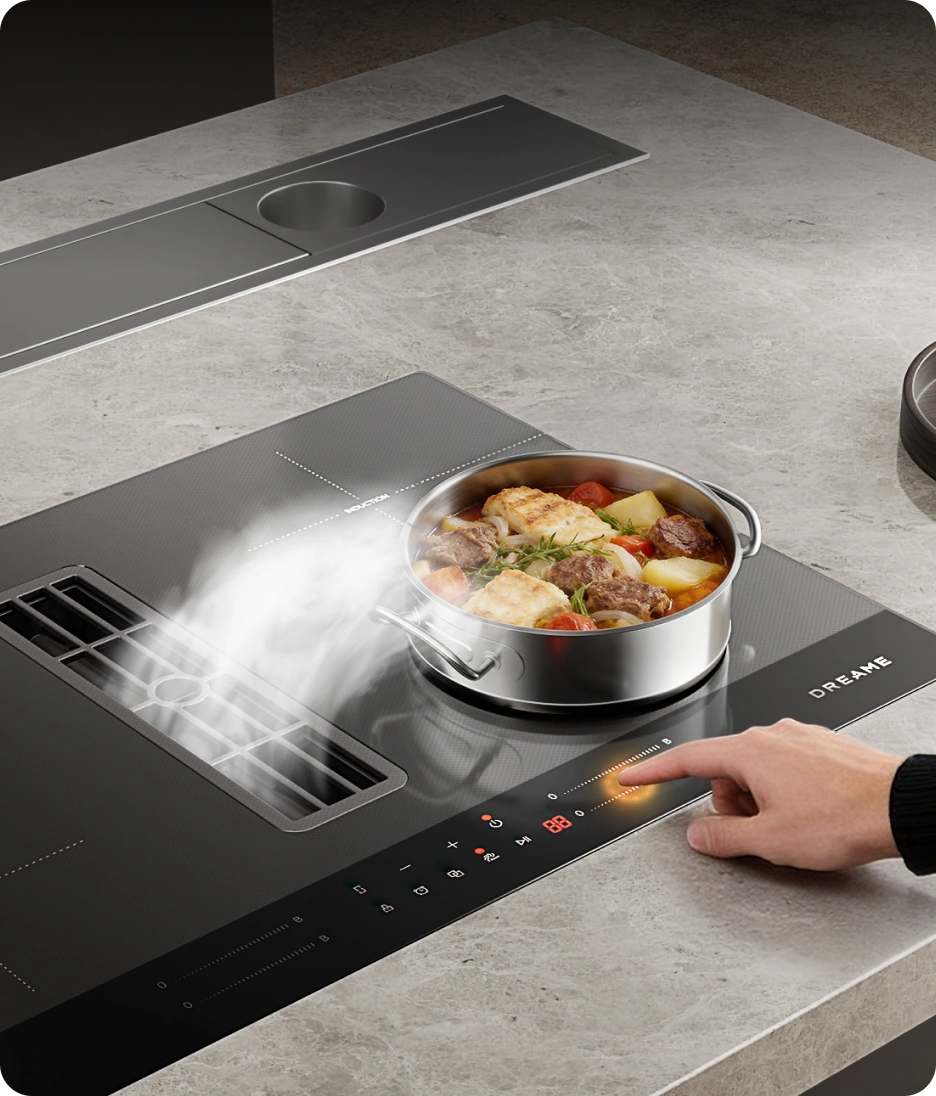

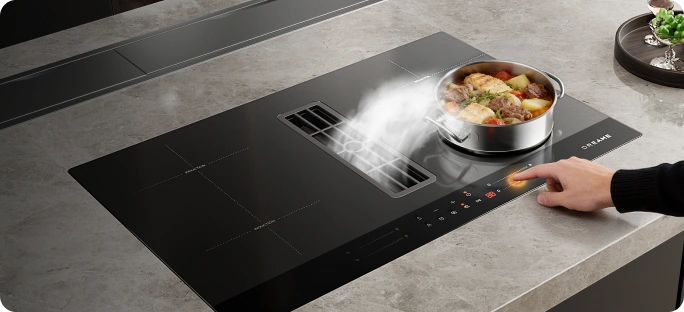

Integrated Hood‑Hob Design

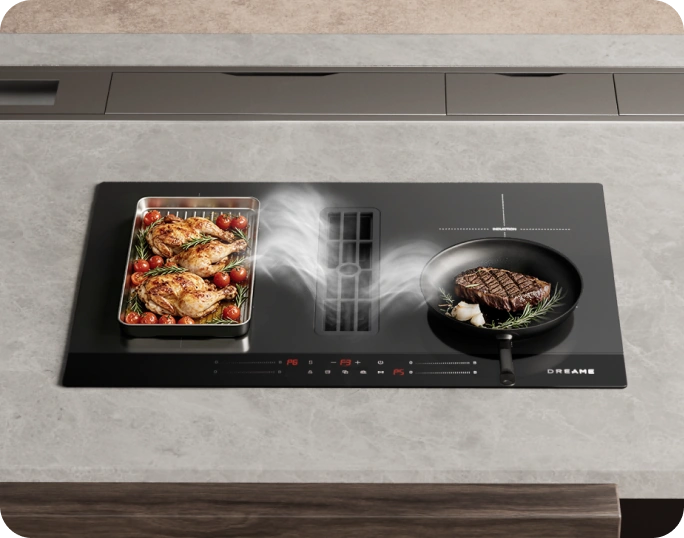

One System,
More Kitchen Flexibility.

The ventilation system is built into the hob, maximizing usable cooking space, no hood cabinet required, clean, sleek, and easy to match with modern kitchens.

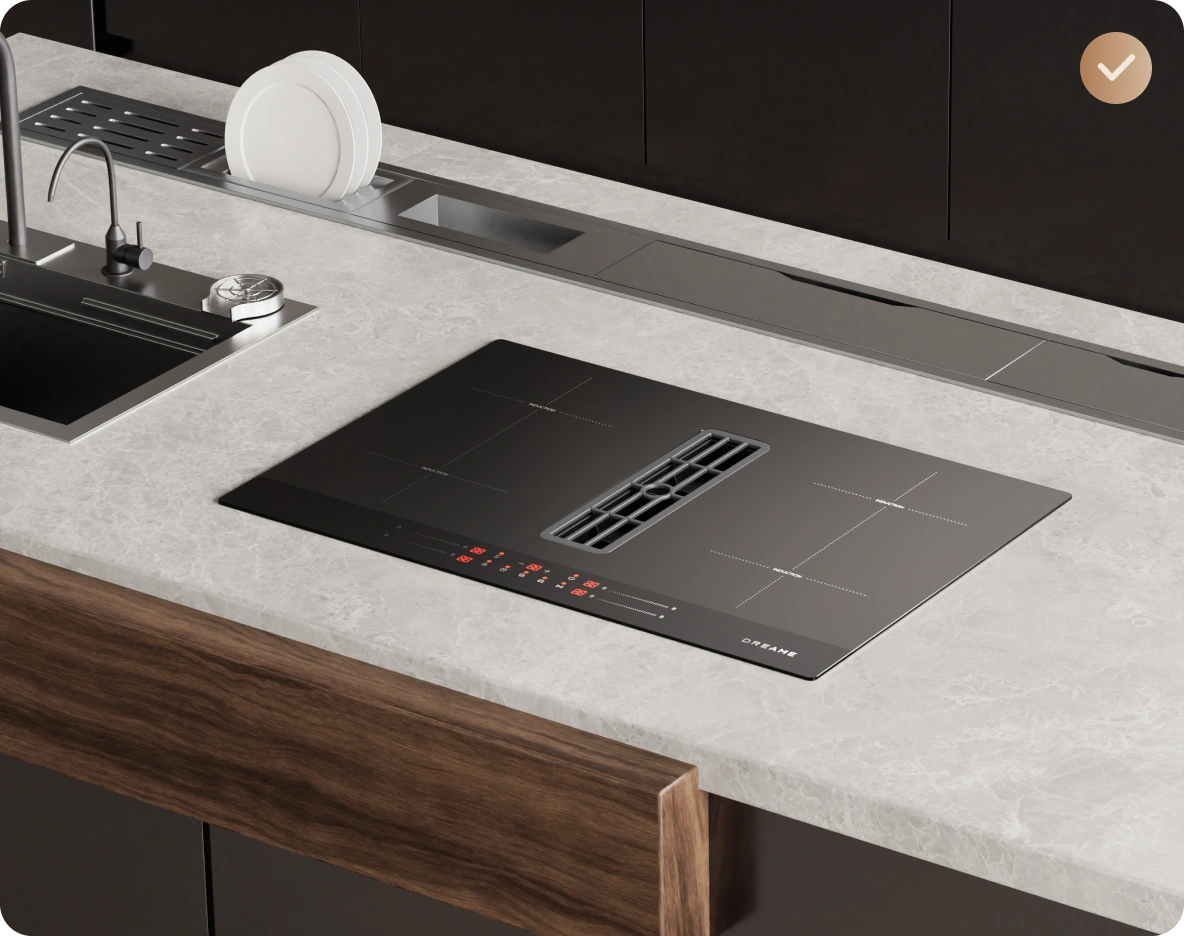

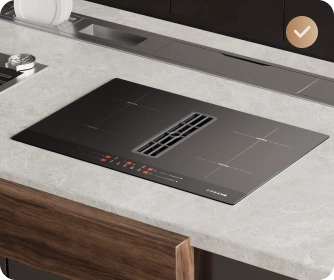

Dreame Kitchen

VS

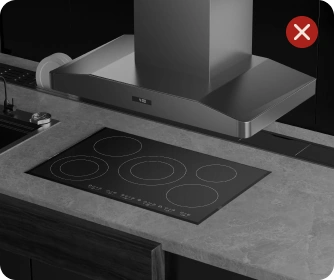

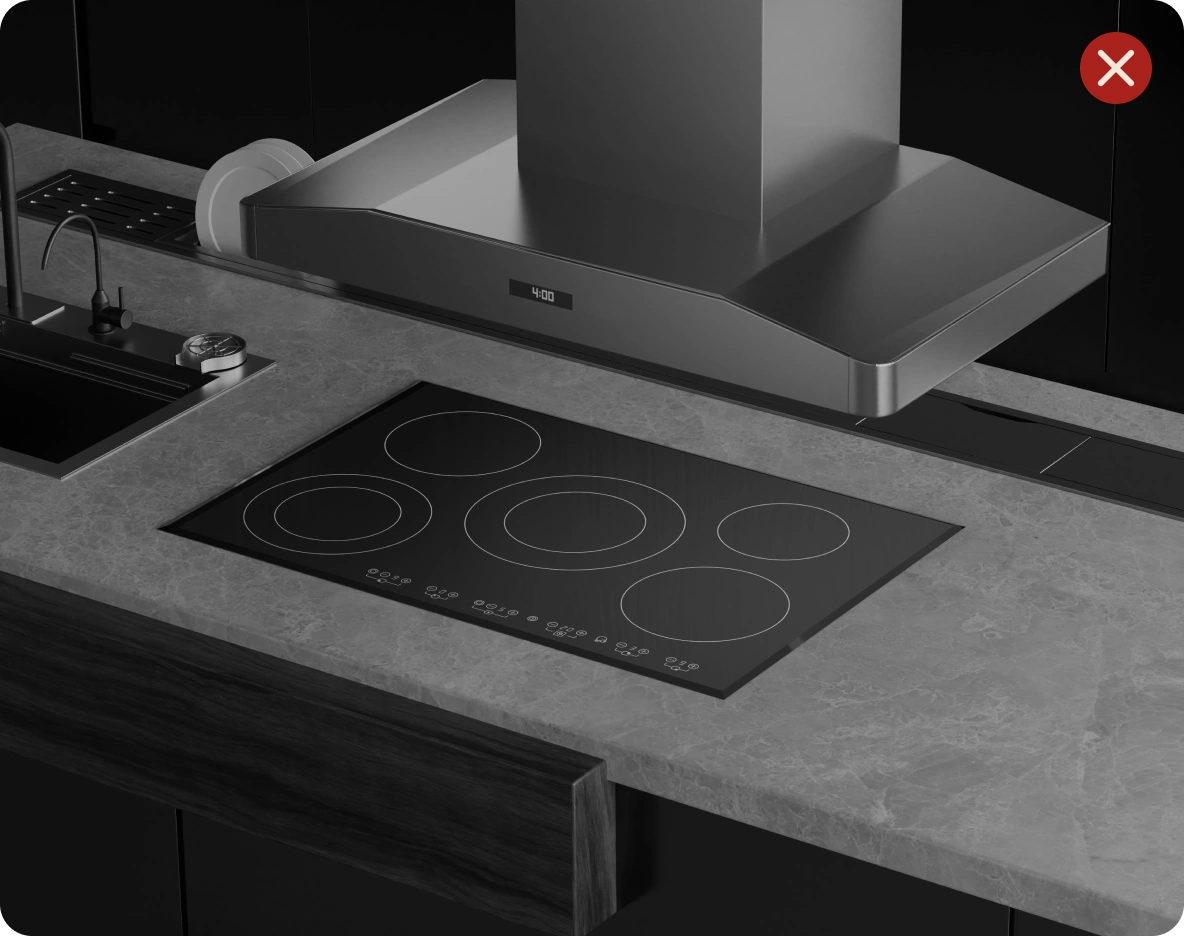

Conventional Kitchen

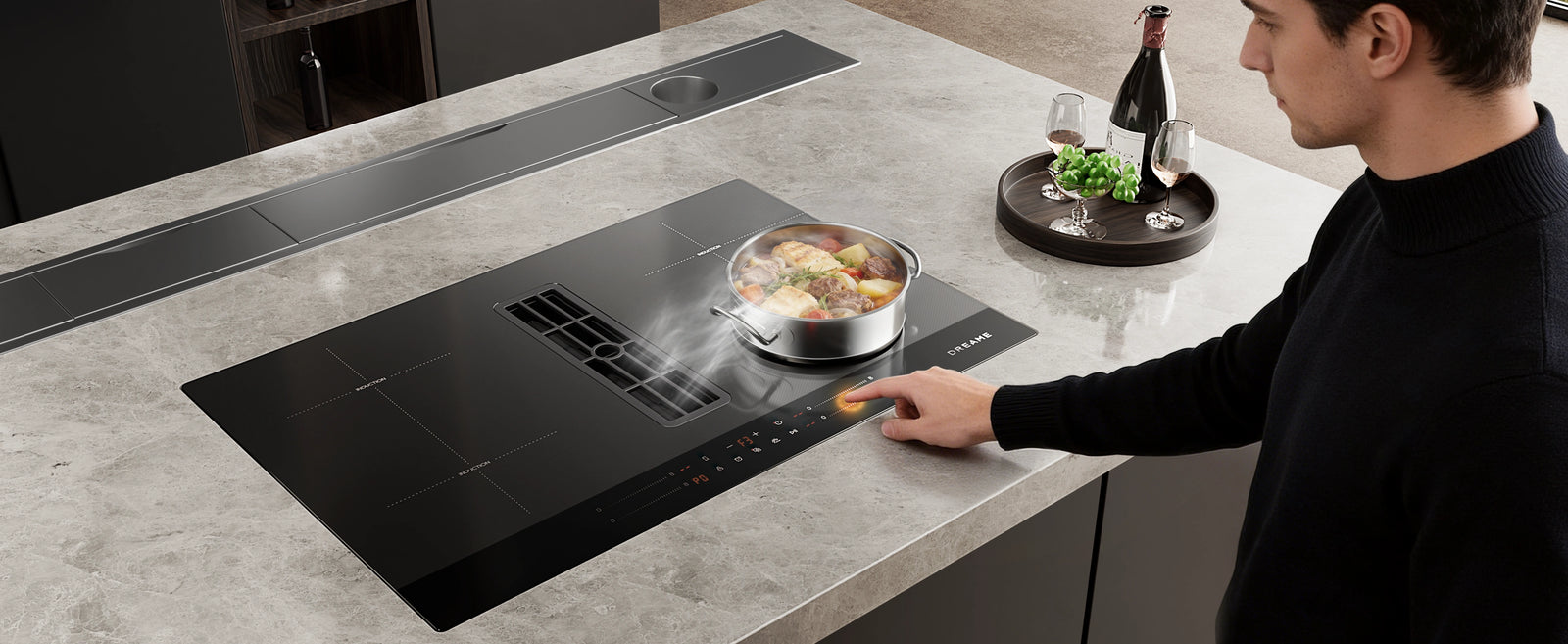

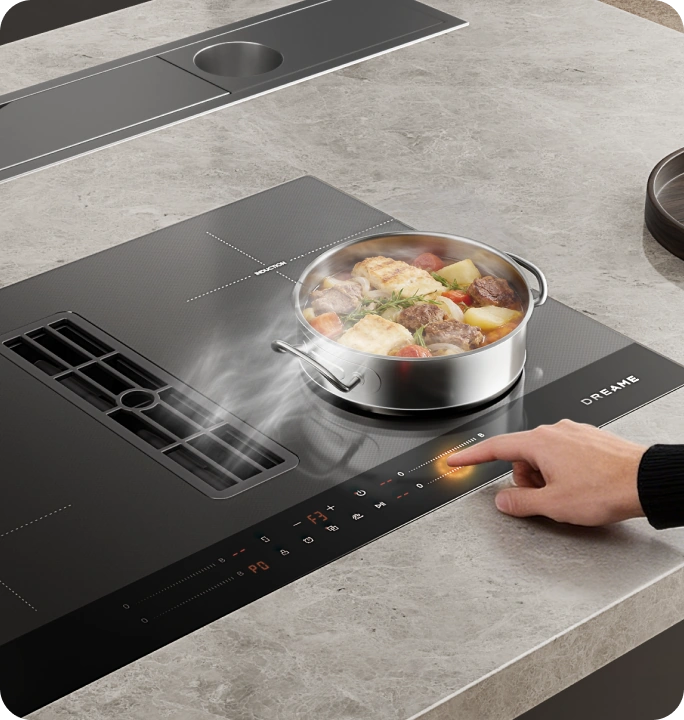

Smart Hood‑Hob Linkage

Ventilation starts automatically when you cook, it increases airflow for heavier smoke, and reduces noise and energy use during low heat cooking, for smarter extraction.

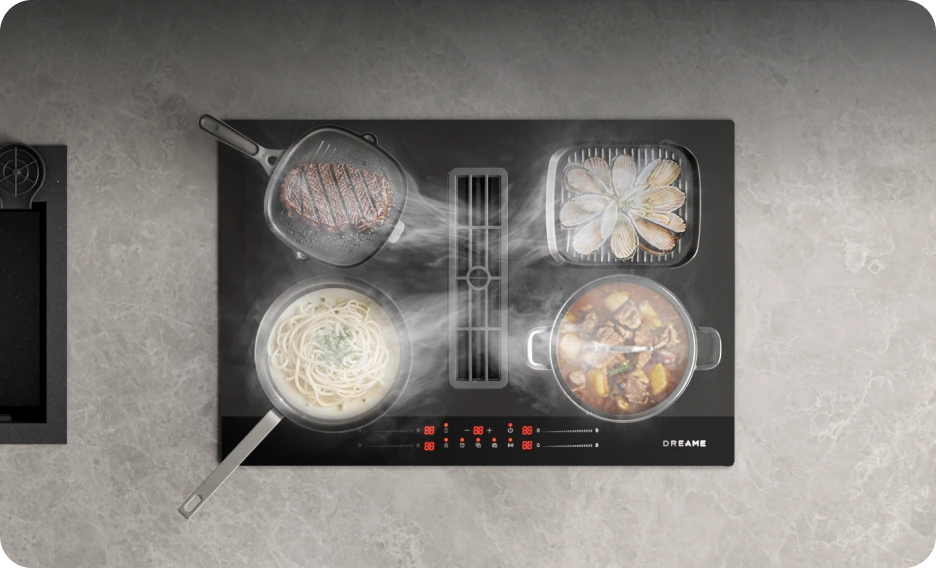

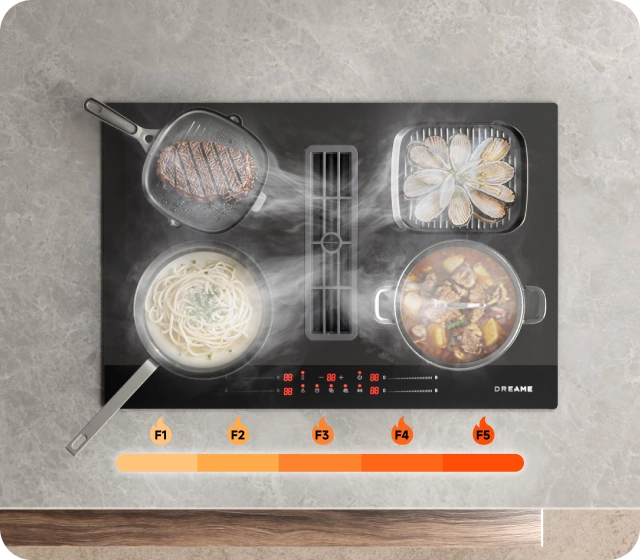

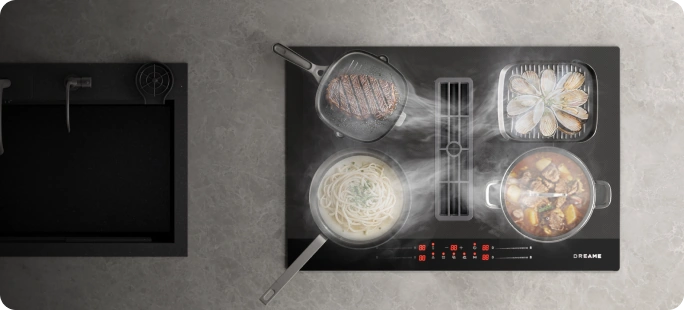

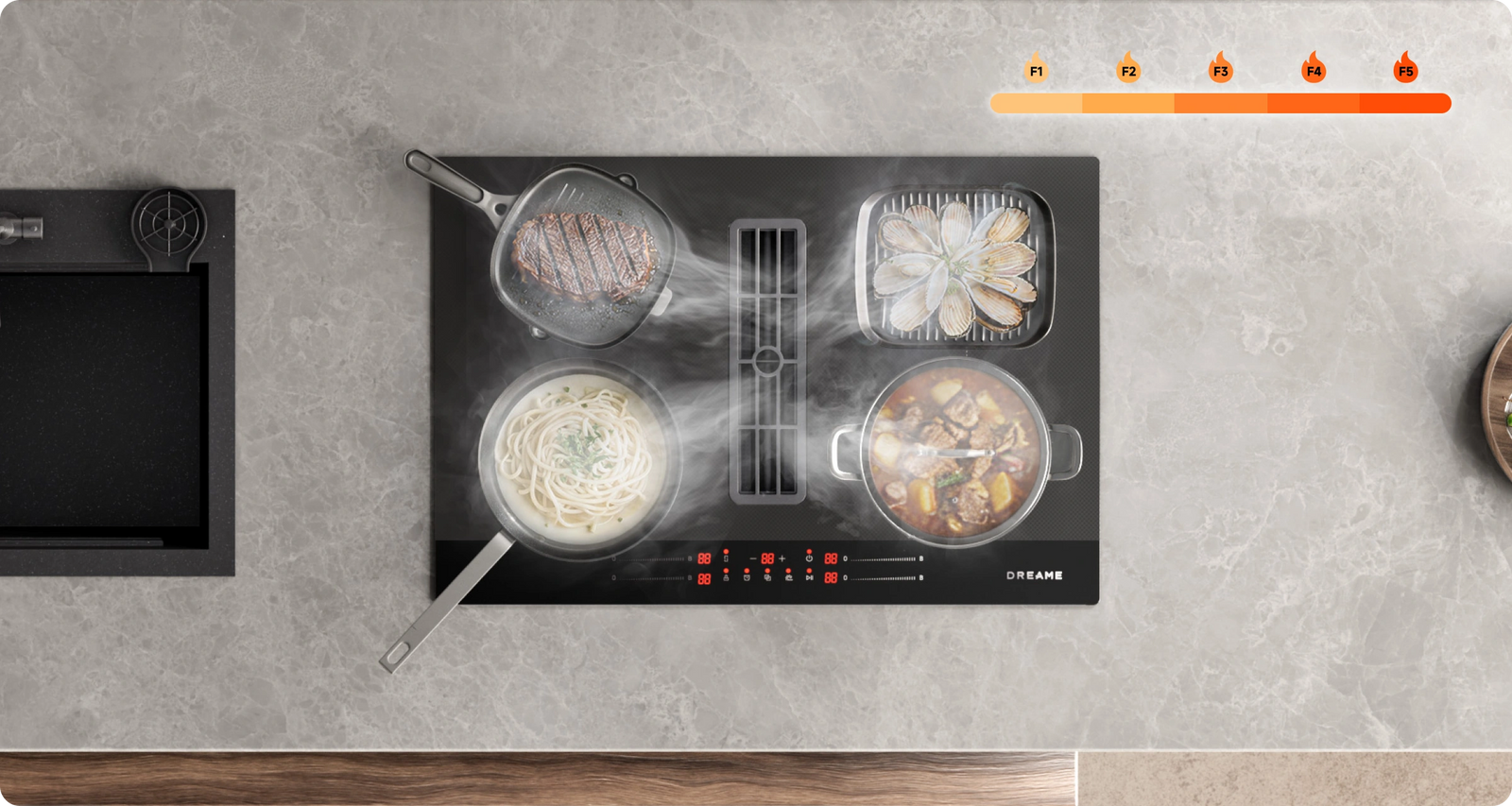

Four‑Zone Precise Control for Cooking in Sync

P1-P2
P3-P4
P5-P6
P7-P8
P9-Boost

Up to2400WSelected Zone

Up to3000WBridged Zone

The four-zone layout supports 9-level fine adjustment on each zone, ready for gentle low-heat cooking and steady simmering, all the way to high-heat dishes for everyday family meals or holiday gatherings.

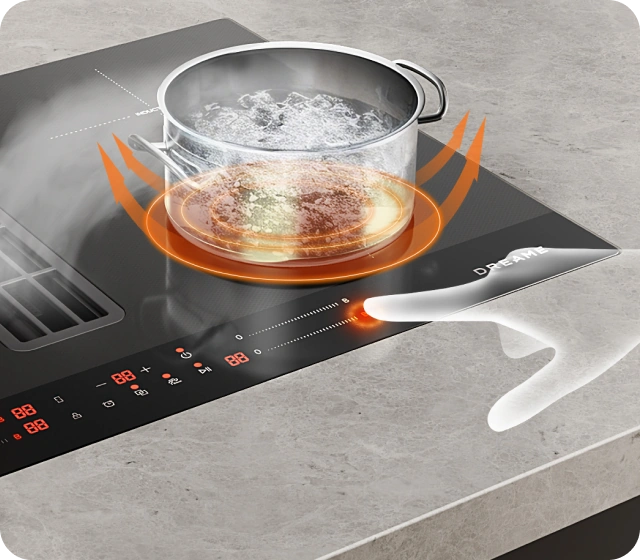

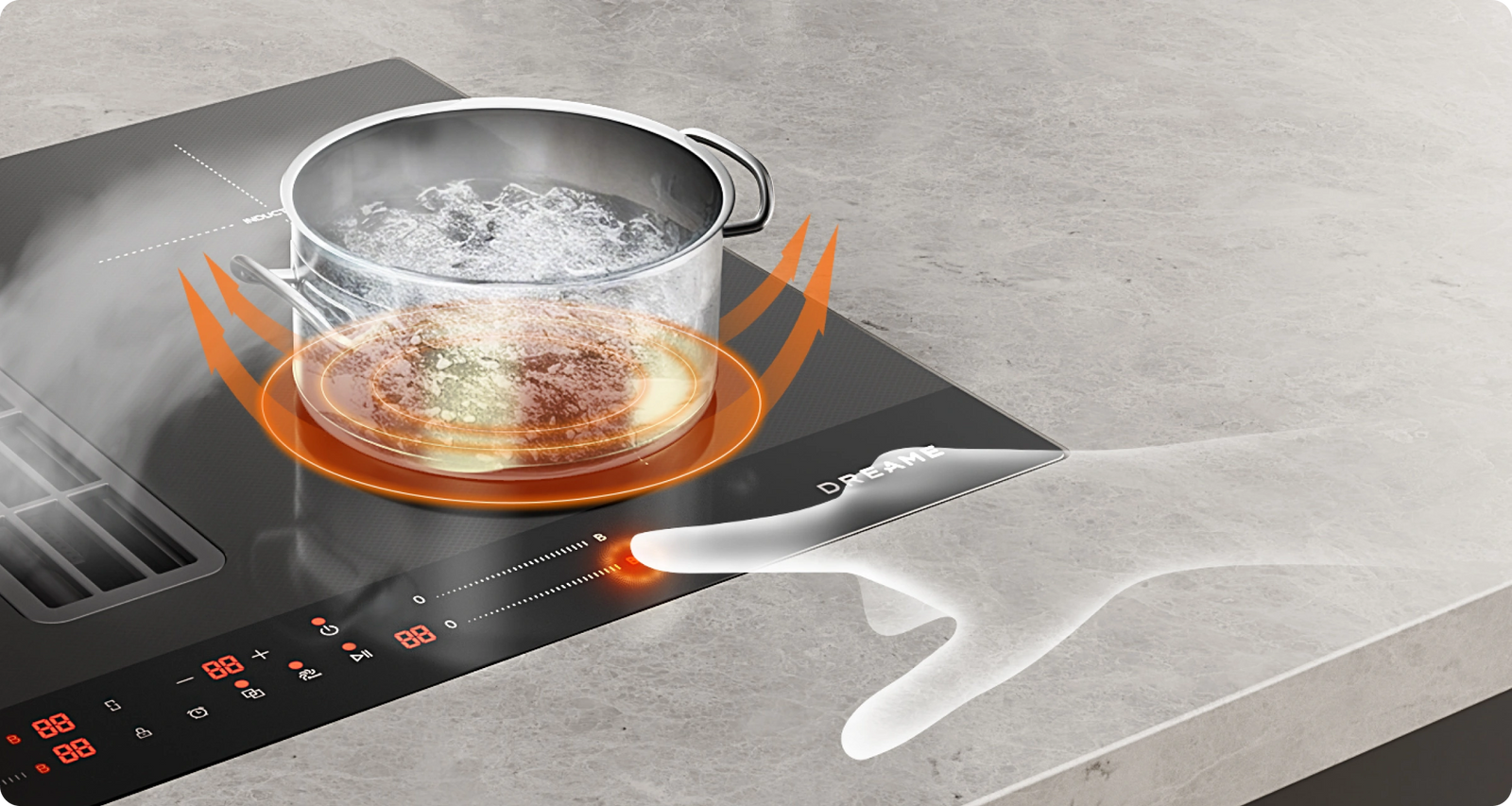

Tap Boost for instant high power. Selected zones reach up to 2400W, and each Bridge Zone up to 3000W, ideal for quick boiling and high‑heat stir‑fry when time matters.

P1-P2
P3-P4
P5-P6
P7-P8
P9-Boost

The four-zone layout supports 9-level fine adjustment on each zone, ready for gentle low-heat cooking and steady simmering, all the way to high-heat dishes for everyday family meals or holiday gatherings.

Up to2400WSelected Zone

Up to3000WBridged Zone

Tap Boost for instant high power. Selected zones reach up to 2400W, and each Bridge Zone up to 3000W, ideal for quick boiling and high‑heat stir‑fry when time matters.

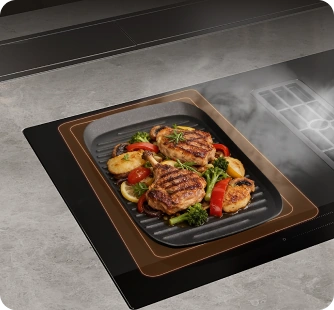

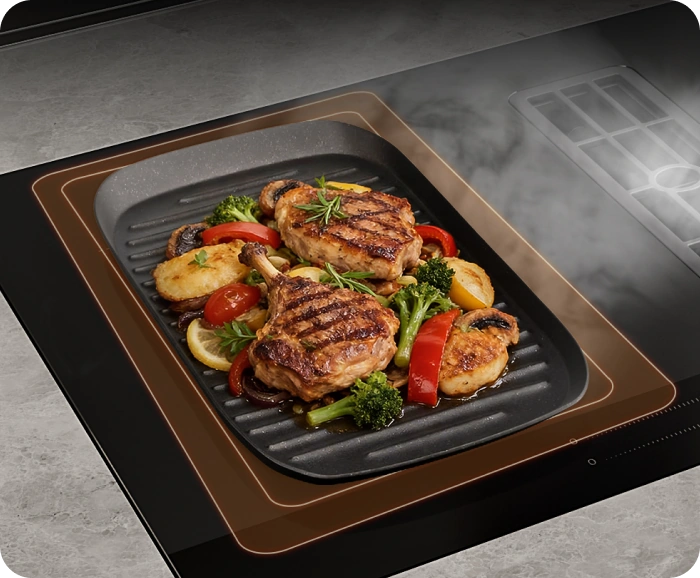

Two Flexible Bridge Zones

Bridge zones on both sides to create two larger induction zones, giving you more usable cooking space when you need it. Even long pans, large pots, and specialty cookware can heat more evenly across the base.

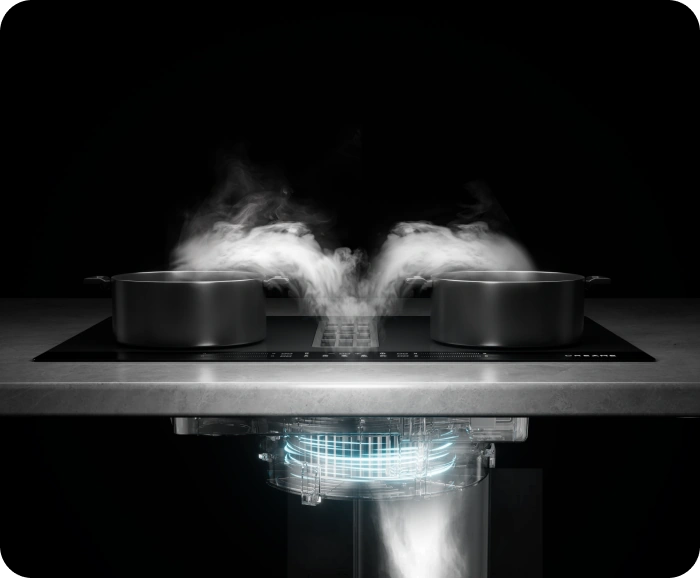

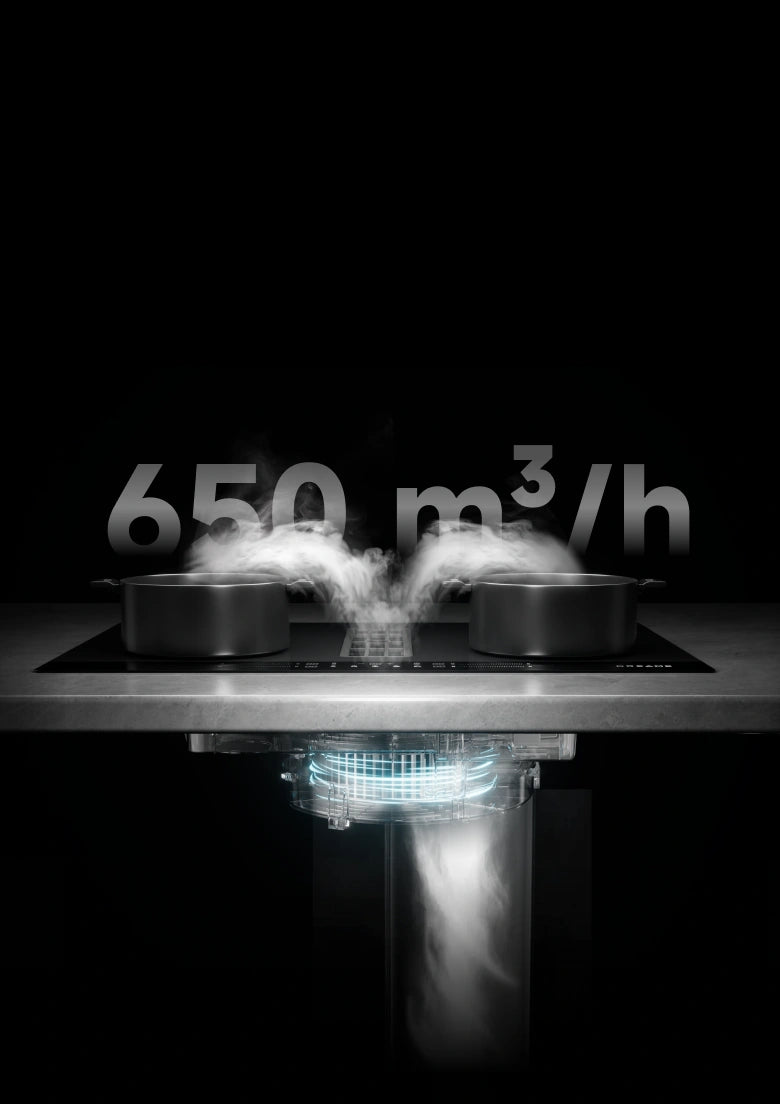

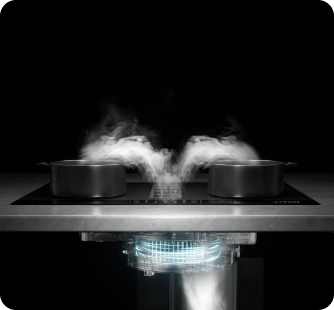

Efficient Smoke Purification

Up to 650 m³/h* Extraction

Extraction reaches up to 650 m³/h, quickly removing smoke and odors from frying, stir frying, and high heat cooking, helping keep the kitchen feeling fresh.

*All data above comes from Dreame Lab tests. Actual results may vary depending on usage conditions.

EU A++ Energy Efficiency

A coordinated system design balances performance and energy use, supporting lower household energy costs over time.

Low‑Noise Operation

With A++ high energy efficiency and stable performance, Low‑Noise Operation, helping keep conversations comfortable while you cook.

Integrated Ventilation Design

The downdraft design captures smoke and odors right at the source, helping restore fresh air faster.

Convenient & Practical Features

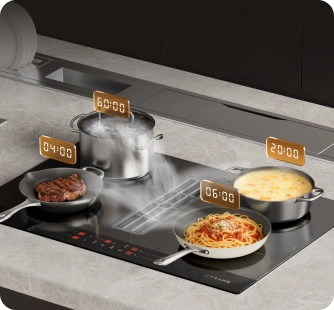

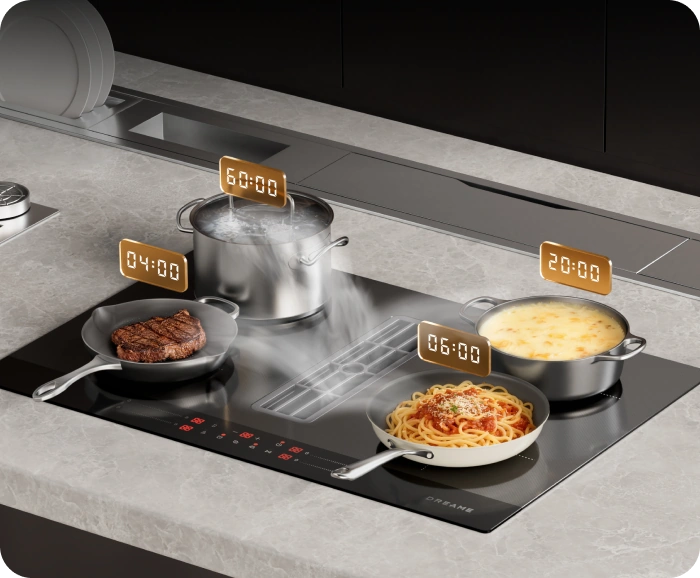

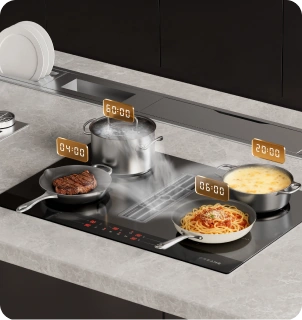

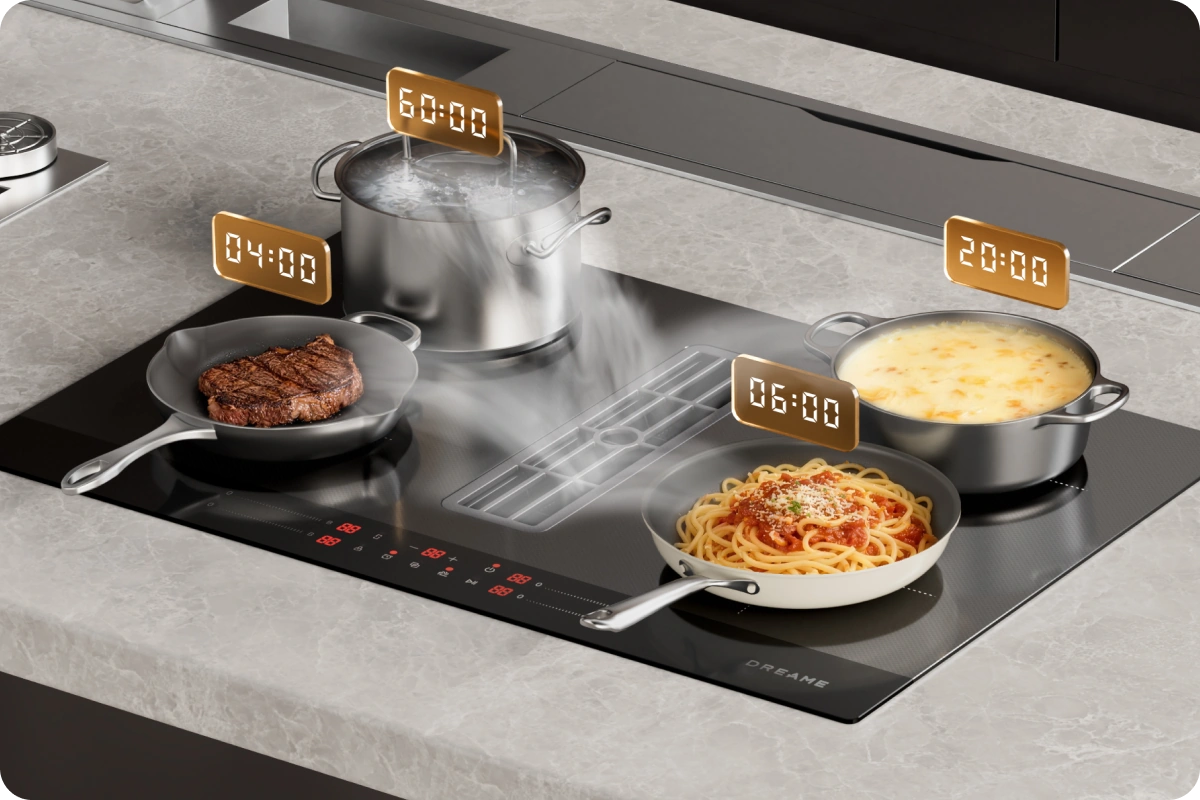

99‑Min Independent Timer

Each zone can be timed separately, with auto alerts and shut‑off for easier multi‑dish cooking.

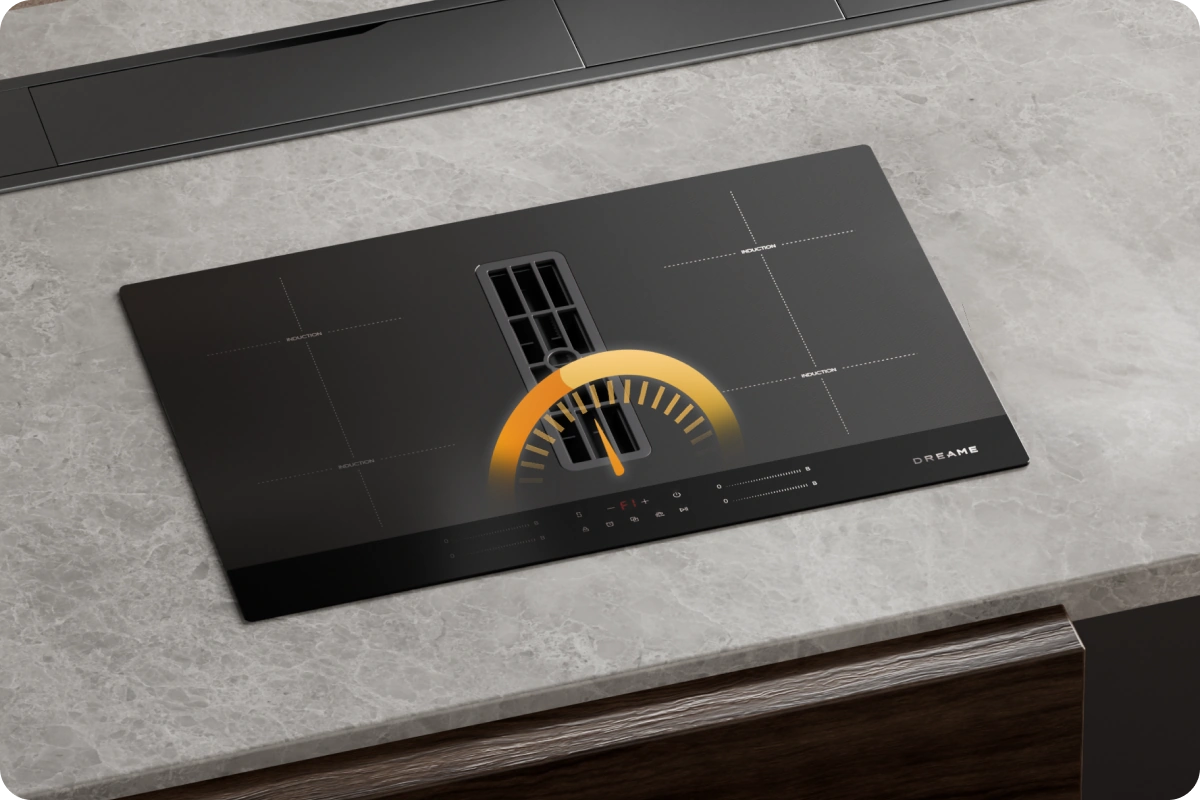

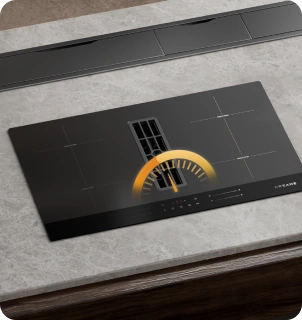

Delay Shut‑off Design

After cooking, ventilation continues for a short time to help clear lingering smoke and odors, keeping the air fresher.

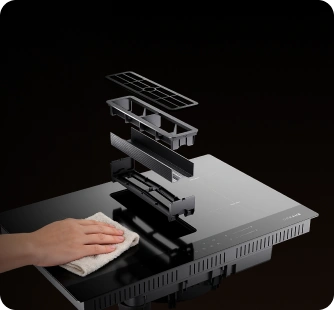

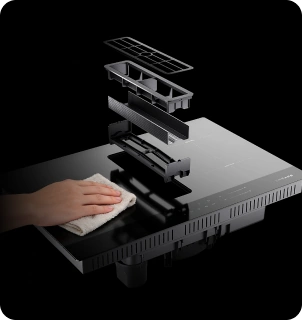

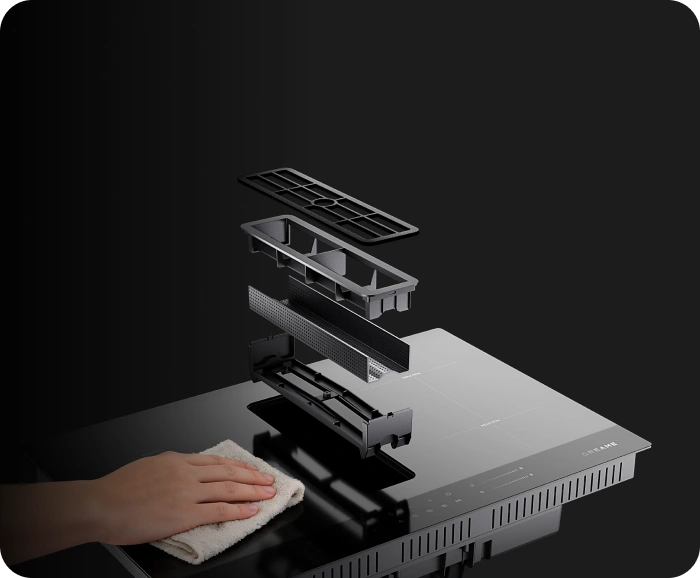

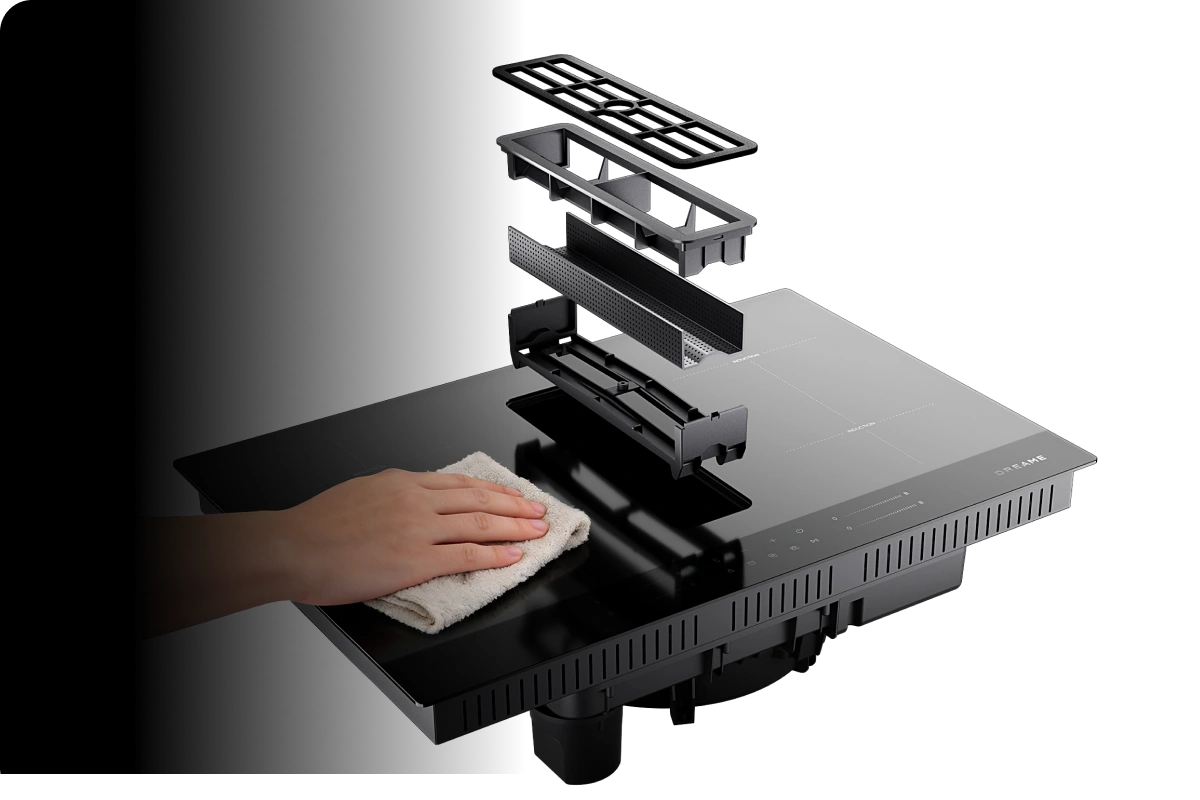

Easy to Remove, <br class="vz40p_c-pc-hide">Easy to Clean

Easy to Remove,
Easy to Clean

A durable ceramic‑glass surface pairs with removable ventilation parts, making interior cleaning simpler than traditional hoods.

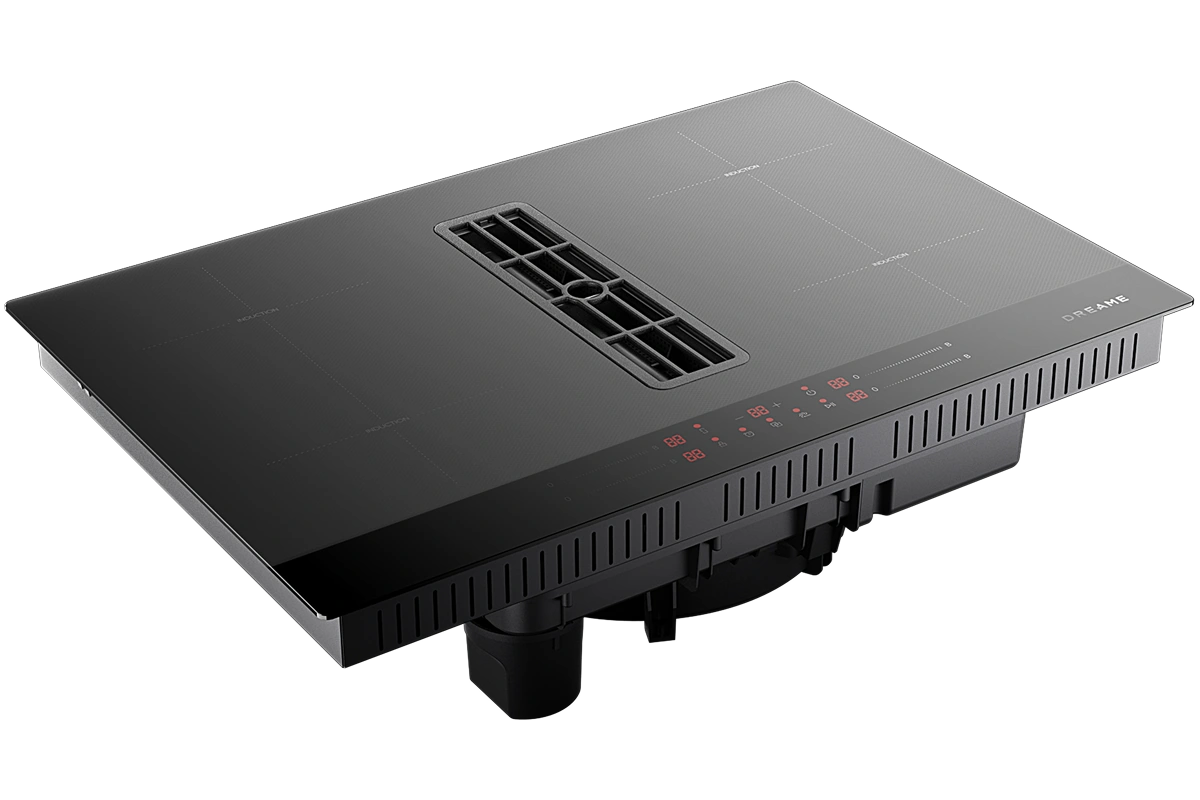

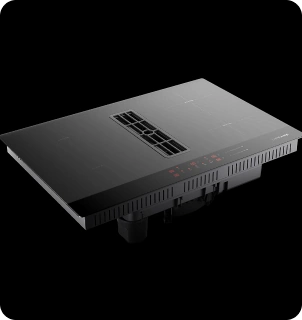

Full Touch Control Design

Just tap and slide to adjust power levels. A clearer layout reduces switching and keeps control simple.

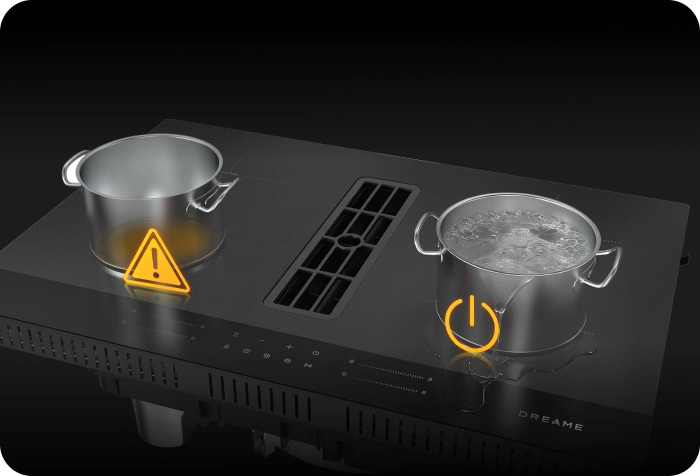

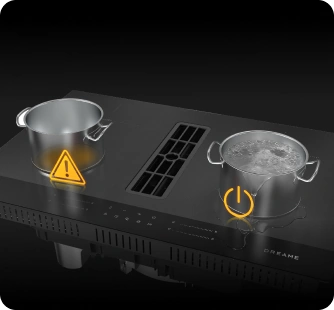

Multi-Safety Protection

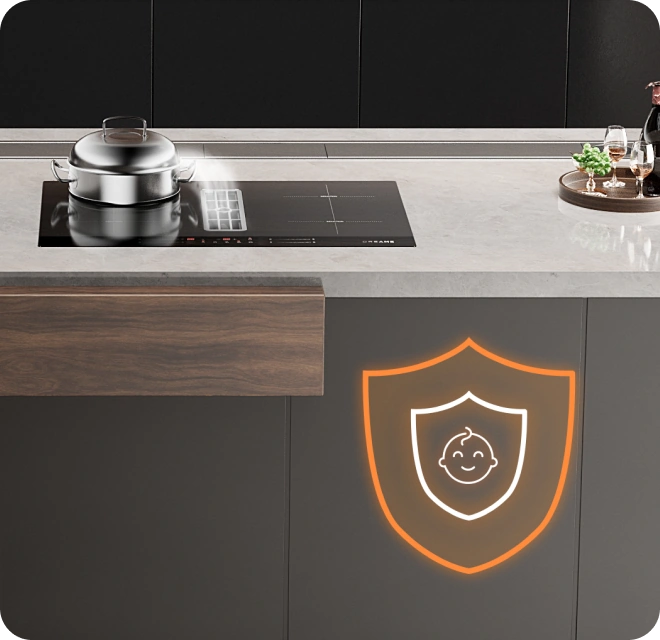

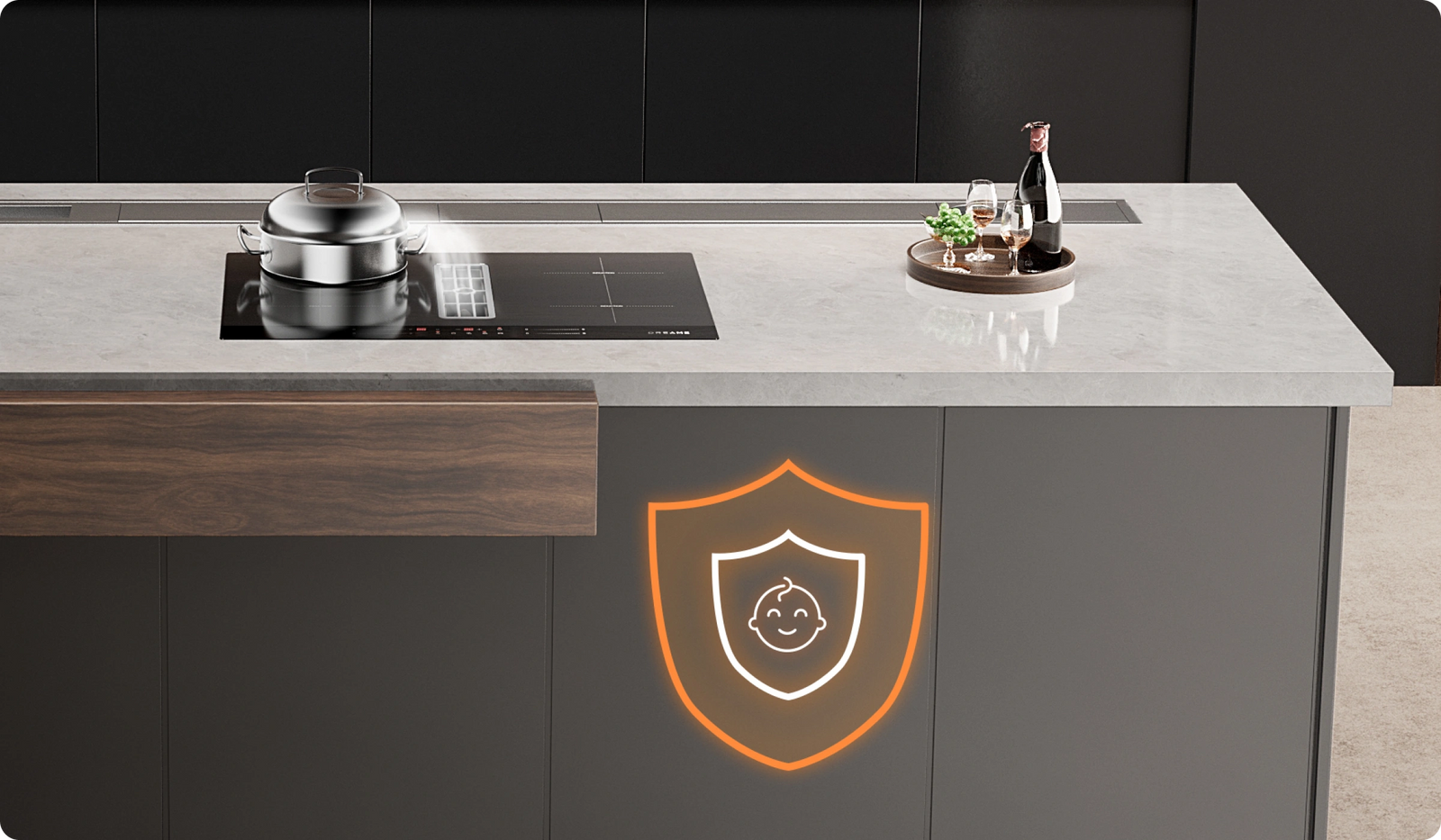

Safety Child Lock

Once the child lock is activated, all touch operations are disabled, adding reassurance for family use.

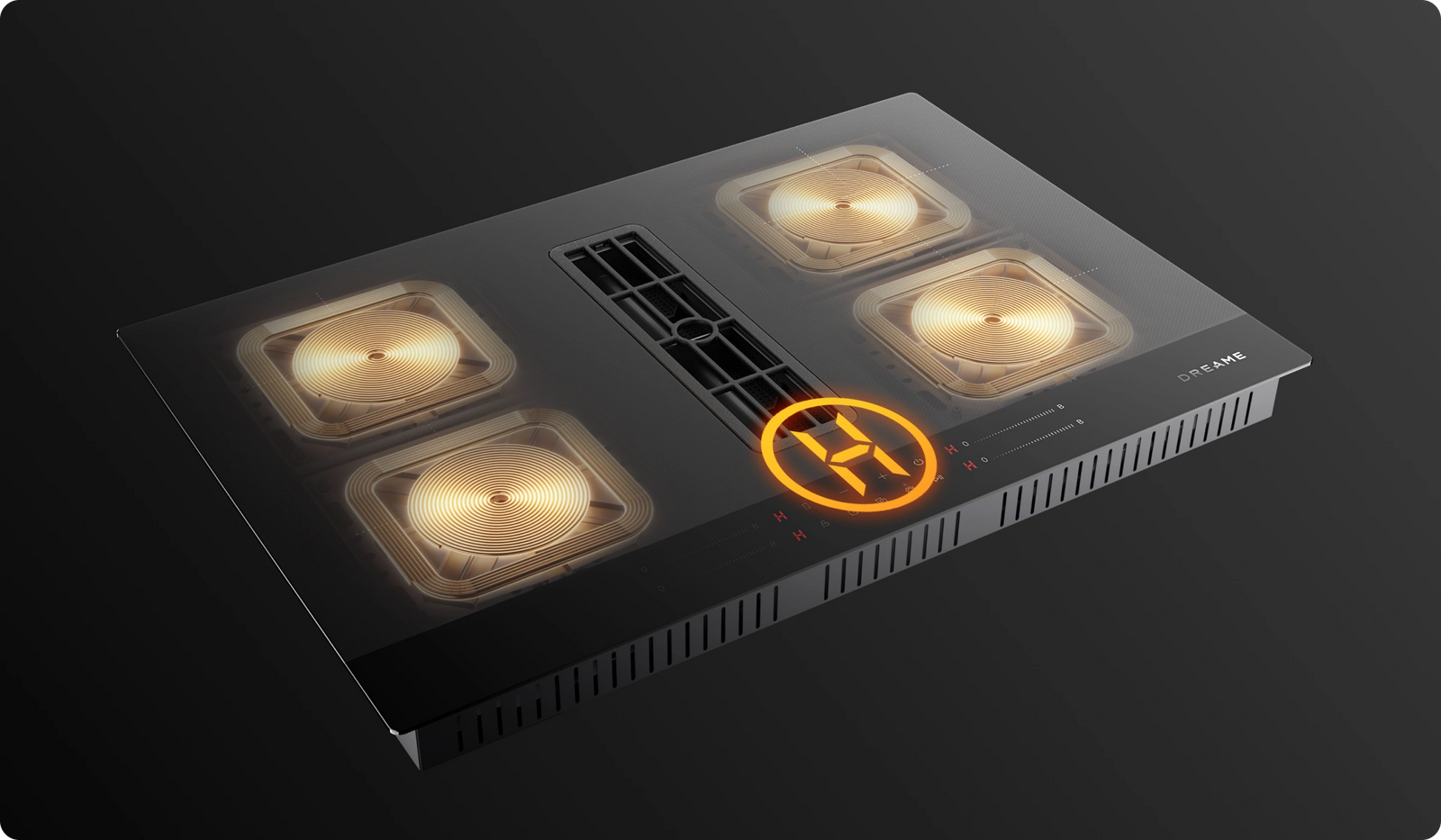

Residual Heat Indicator

Shows residual surface heat after cooking until it returns to a safer range, helping reduce accidental burns and ensuring safer use.

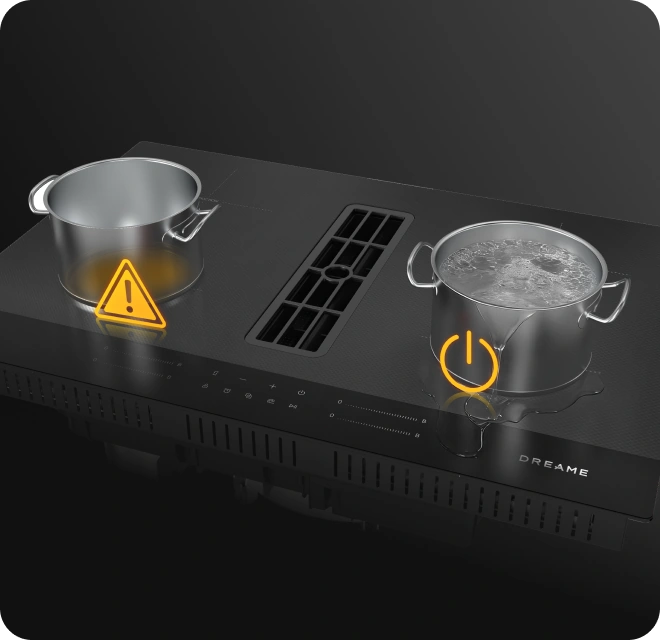

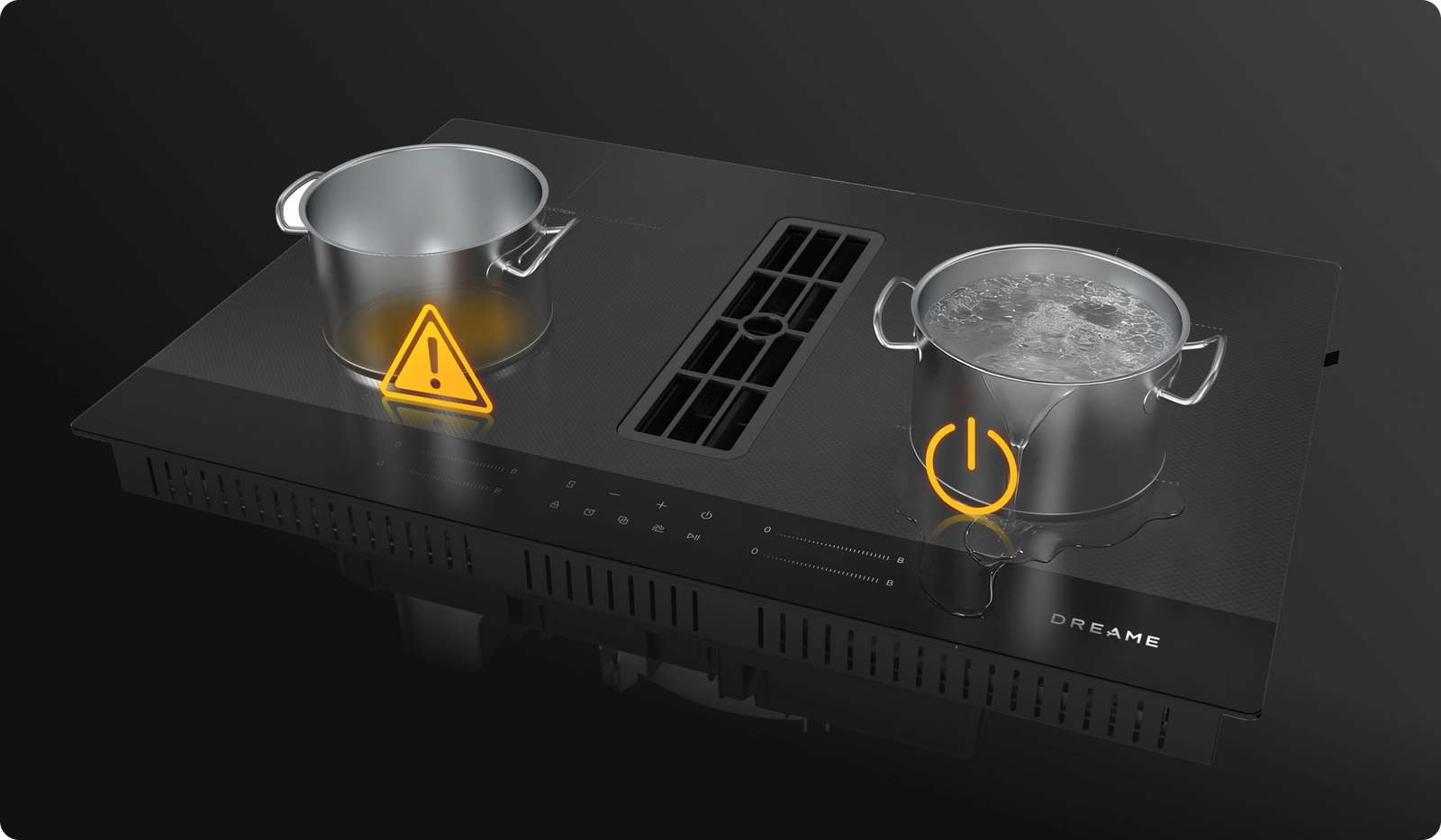

Smart Boil-Dry Protection & Overflow Protection

Smart Boil-Dry Protection: The system continuously monitors the pan’s bottom temperature. If overheating is detected, it stops heating and cuts power automatically, helping prevent dry burning, cookware damage, and safety risks.

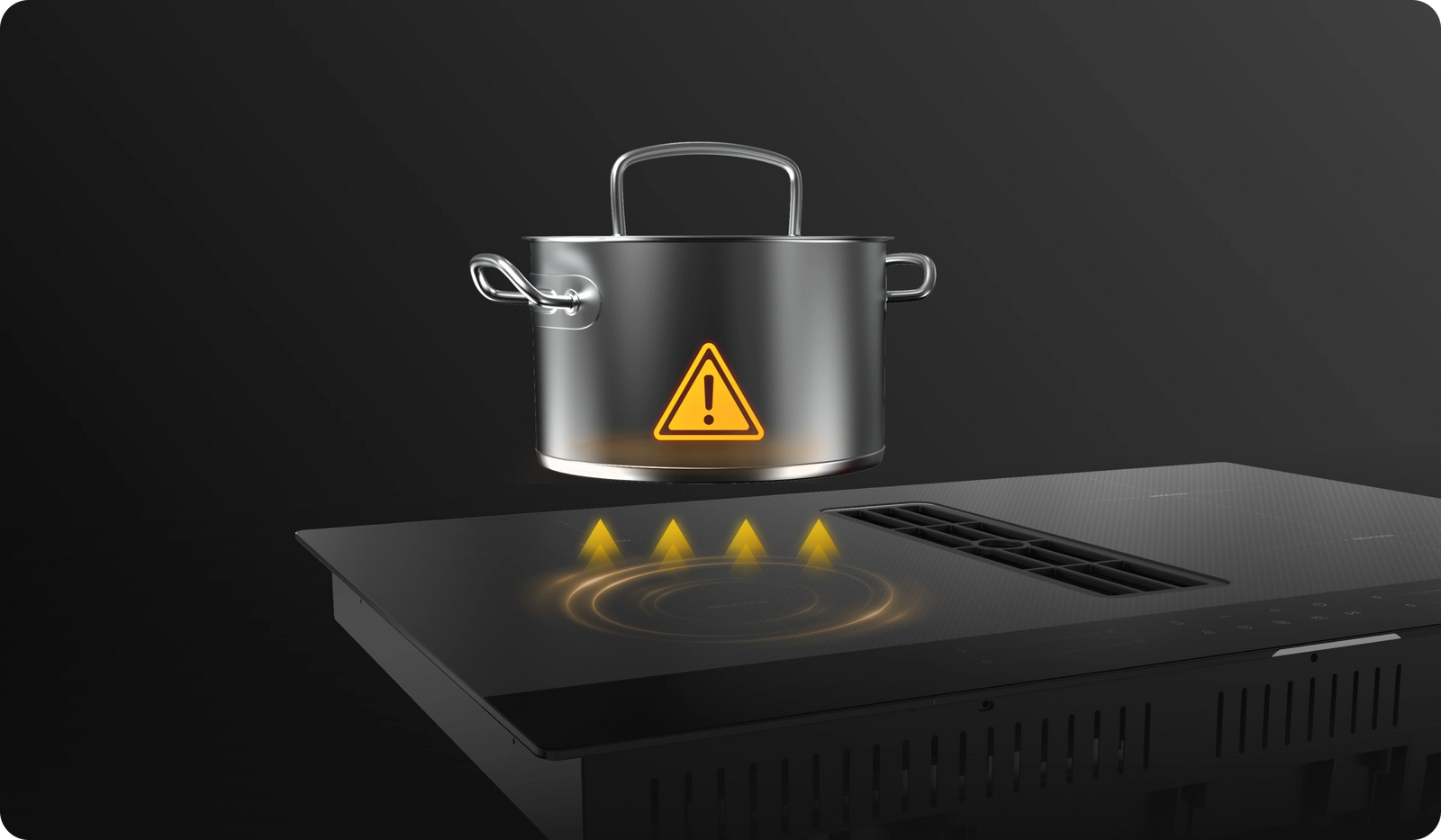

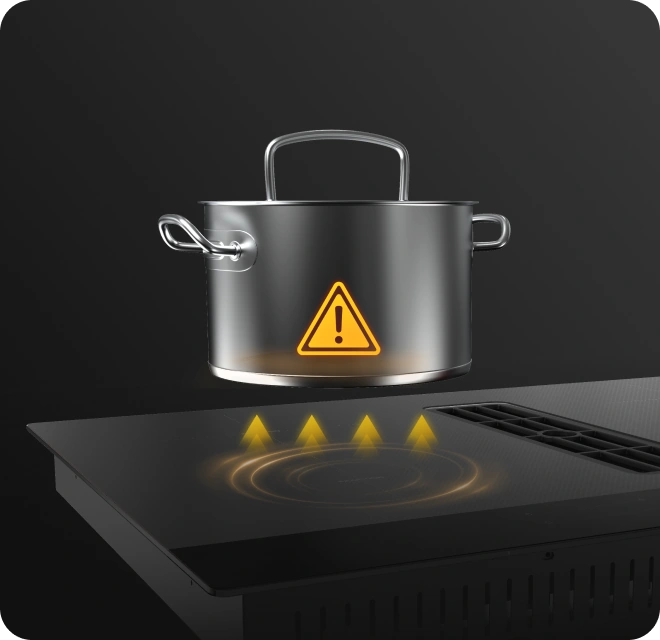

Pot Detection Protection

If cookware is not detected before start, heating will not activate, helping prevent accidental operation and reducing unnecessary energy use.

Safety Child Lock

Once the child lock is activated, all touch operations are disabled, adding reassurance for family use.

Residual Heat Indicator

Shows residual surface heat after cooking until it returns to a safer range, helping reduce accidental burns and ensuring safer use.

Smart Boil-Dry Protection & Overflow Protection

Smart Boil-Dry Protection: The system continuously monitors the pan’s bottom temperature. If overheating is detected, it stops heating and cuts power automatically, helping prevent dry burning, cookware damage, and safety risks.

Pot Detection Protection

If cookware is not detected before start, heating will not activate, helping prevent accidental operation and reducing unnecessary energy use.

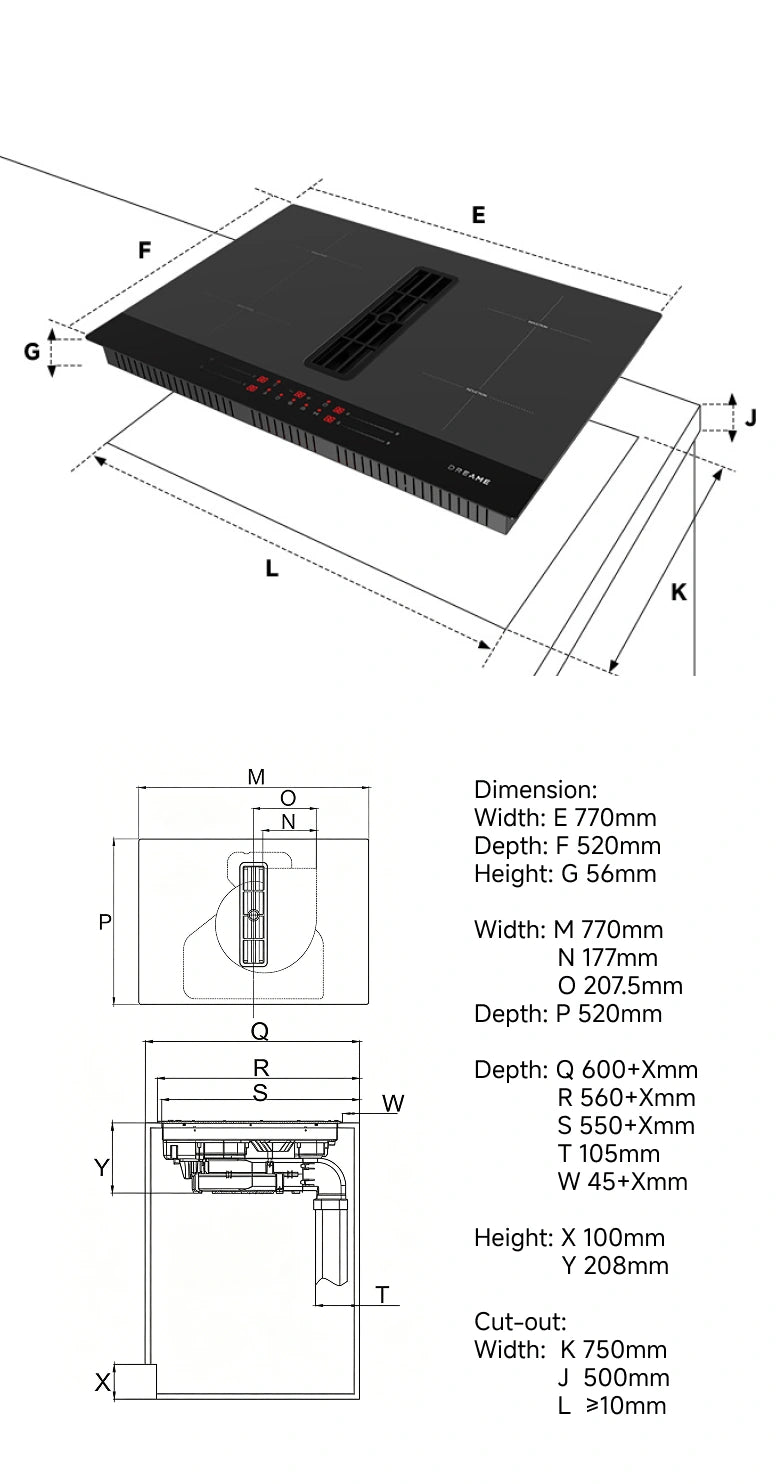

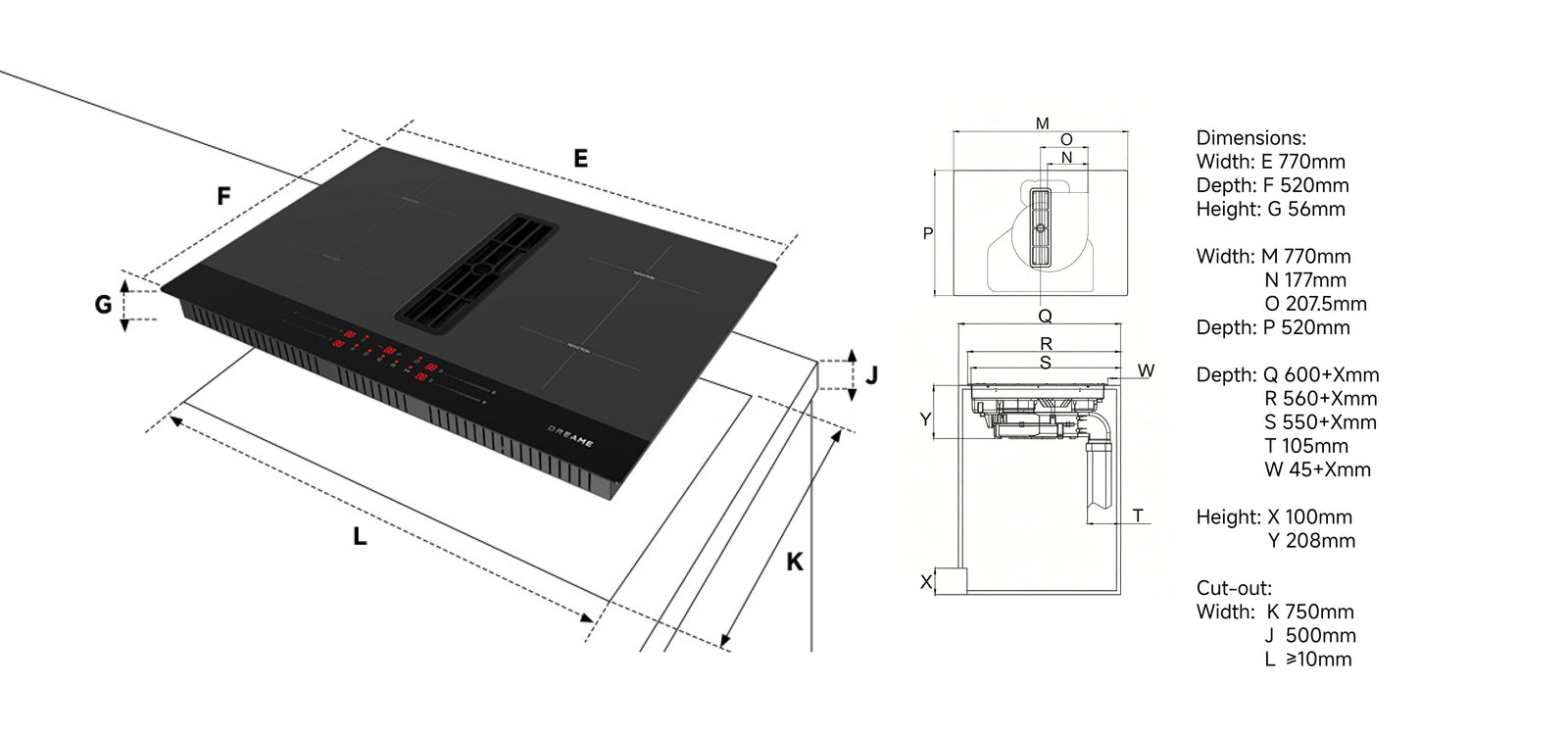

How To Measure

What's in the Box

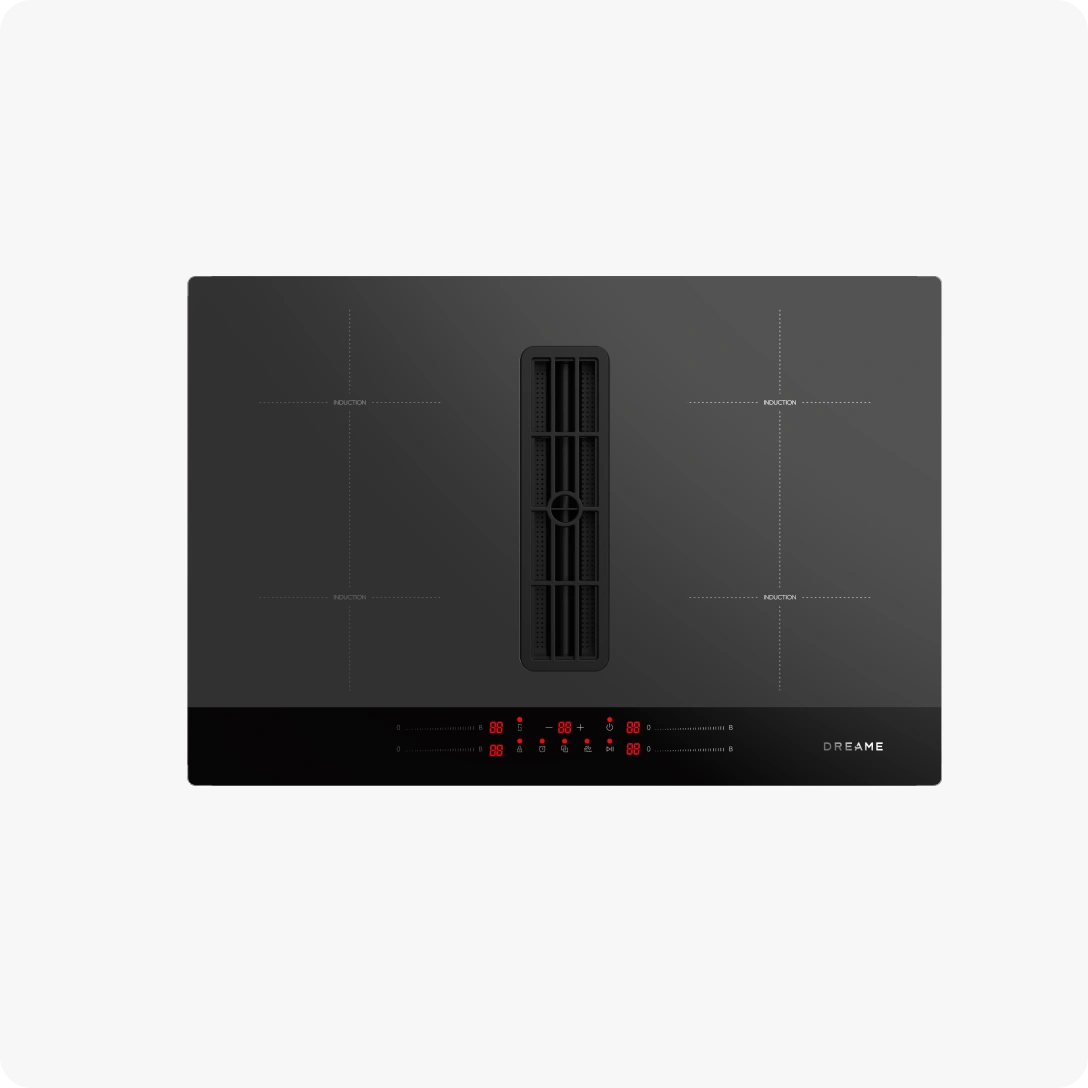

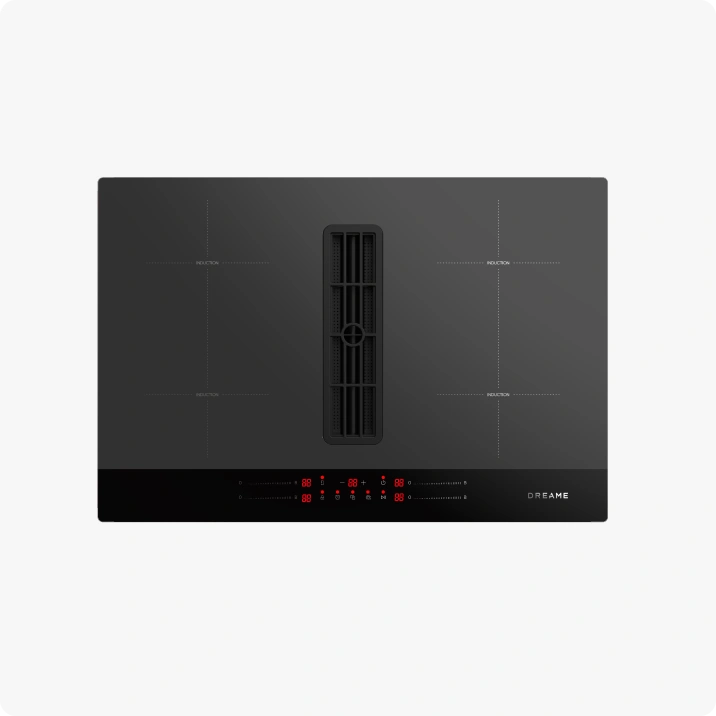

Induction Hob

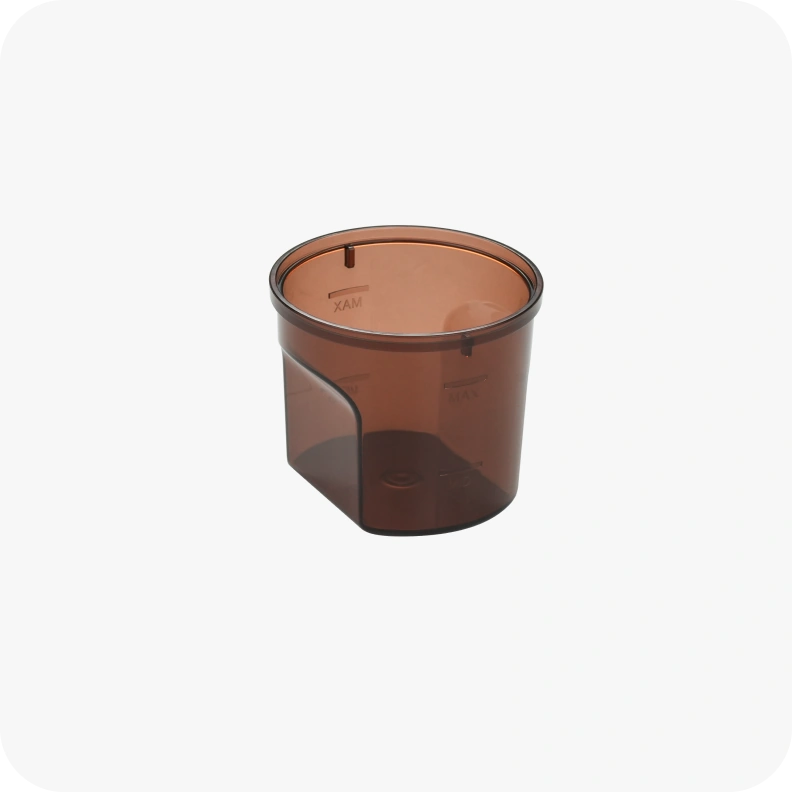

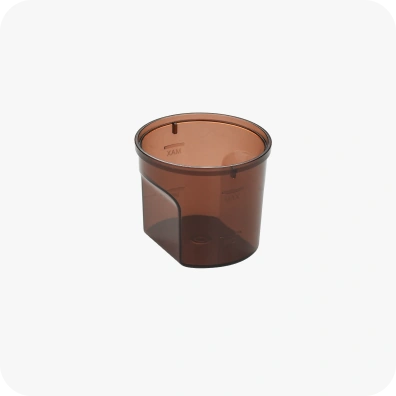

Oil cup

x1

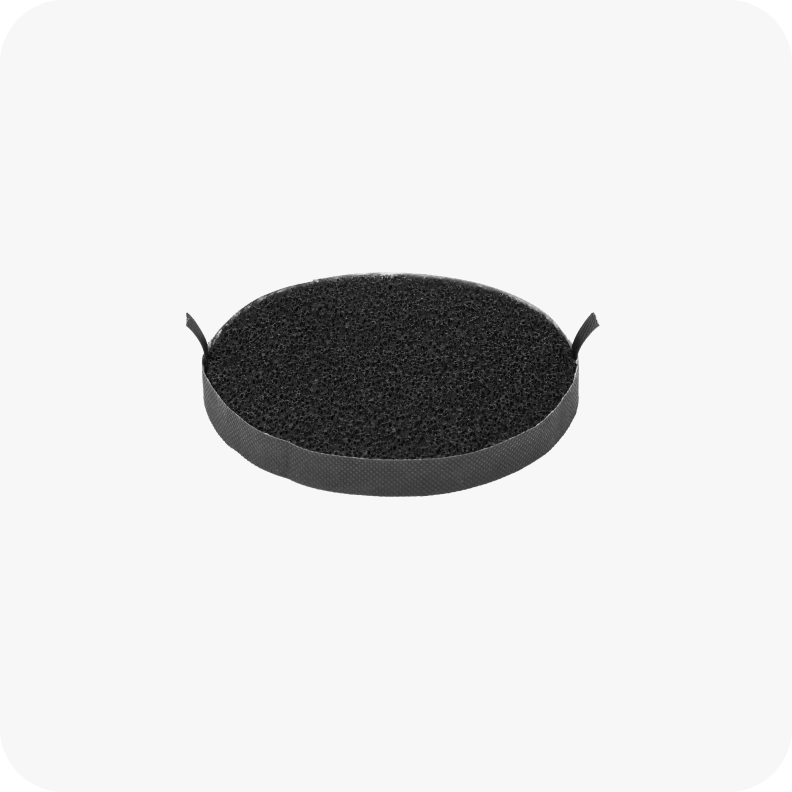

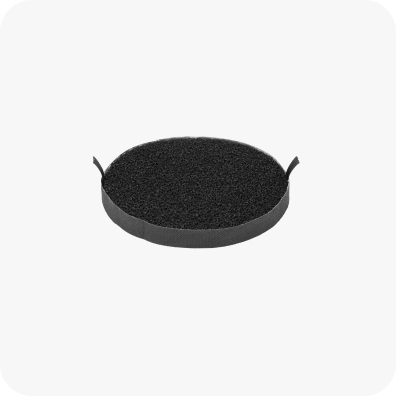

Activated carbon filter screen

x1

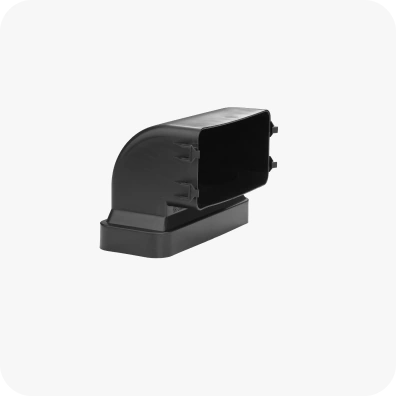

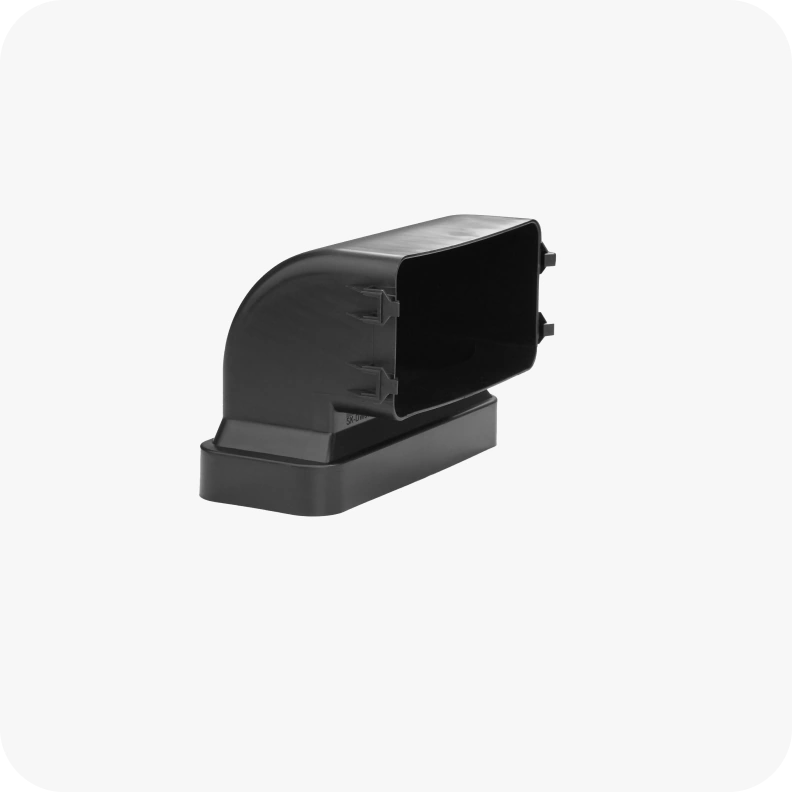

Exhaust pipe connection

x1

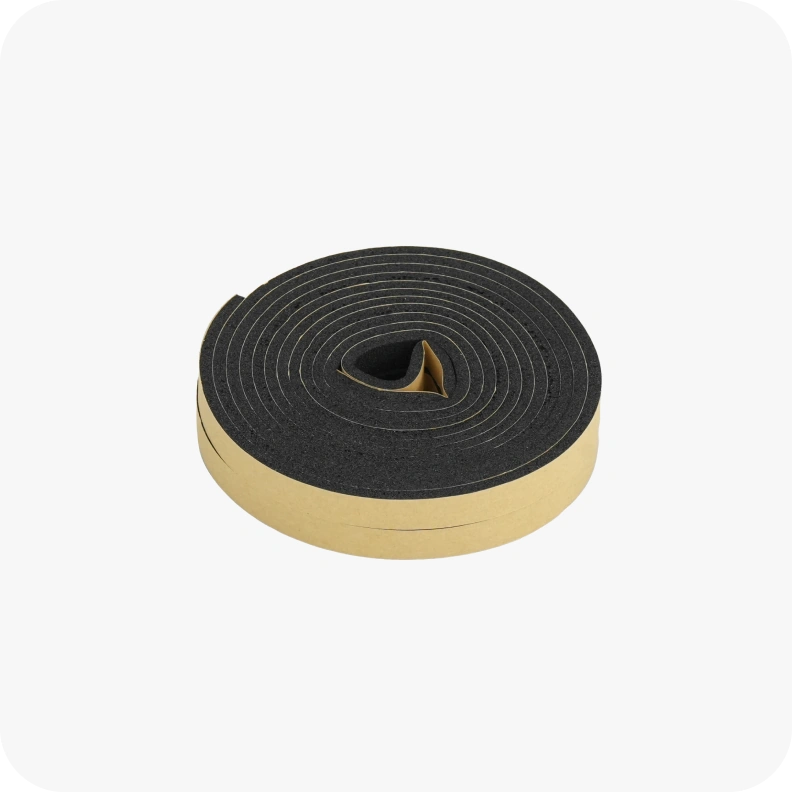

Sponge strip

x2

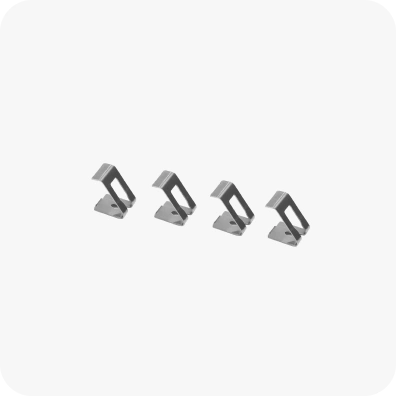

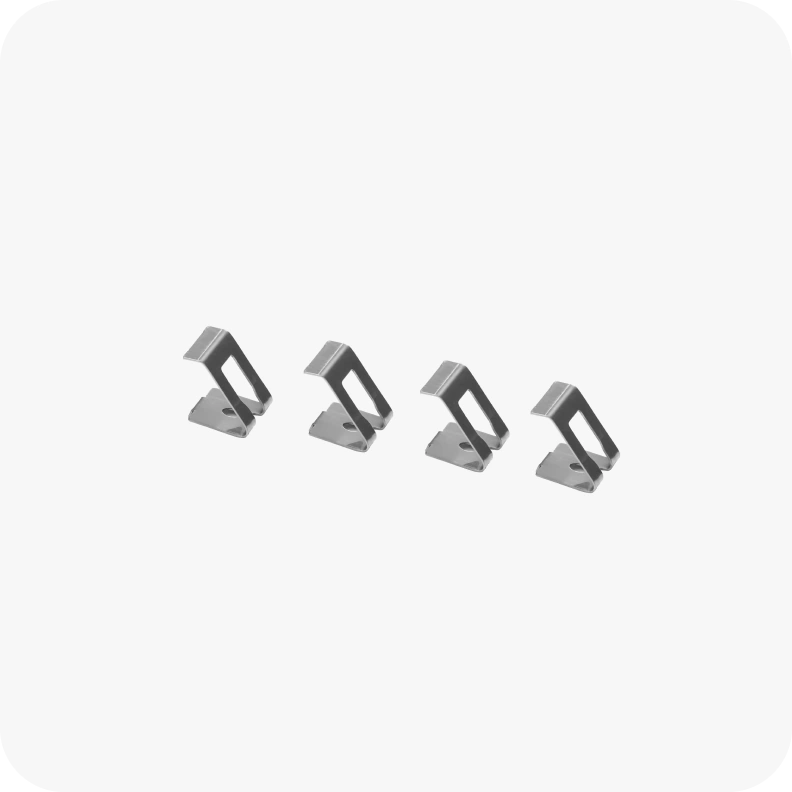

Steel fixing sheet

x4

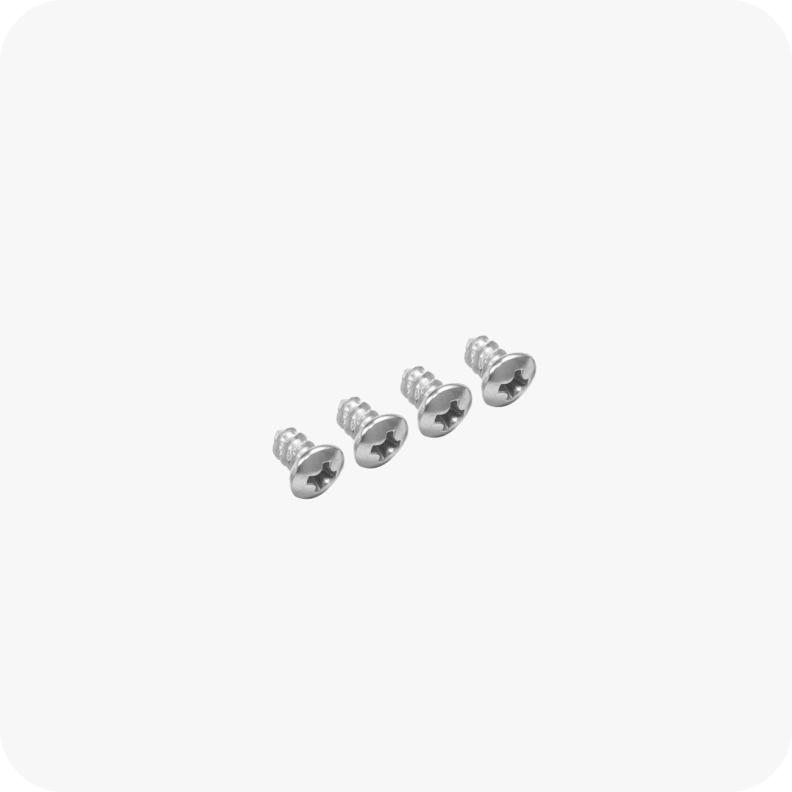

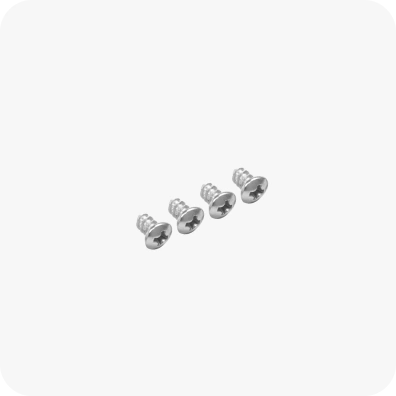

Screw

x4

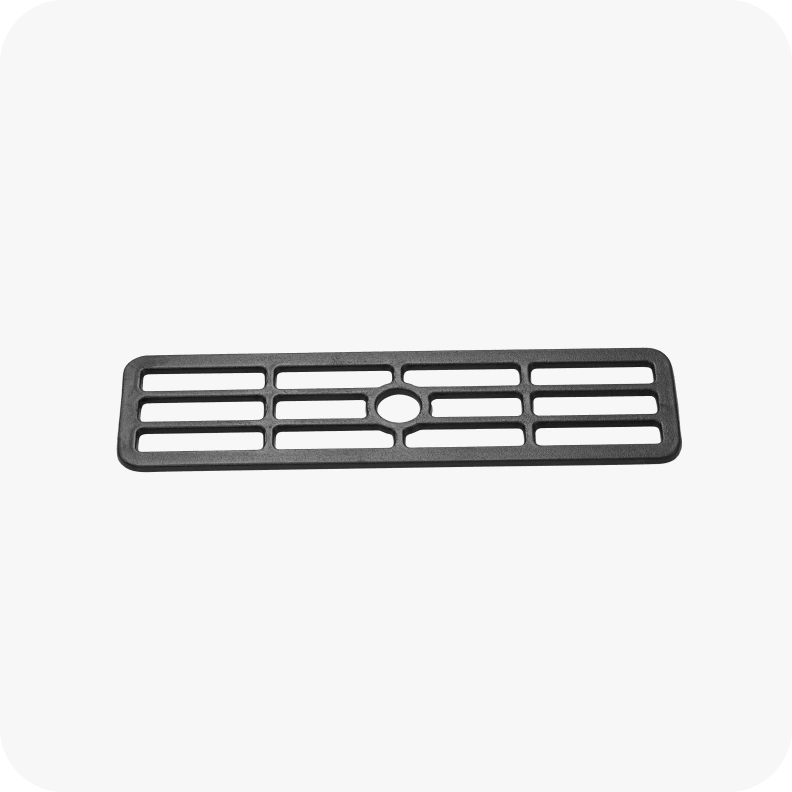

Metal Grid

x1

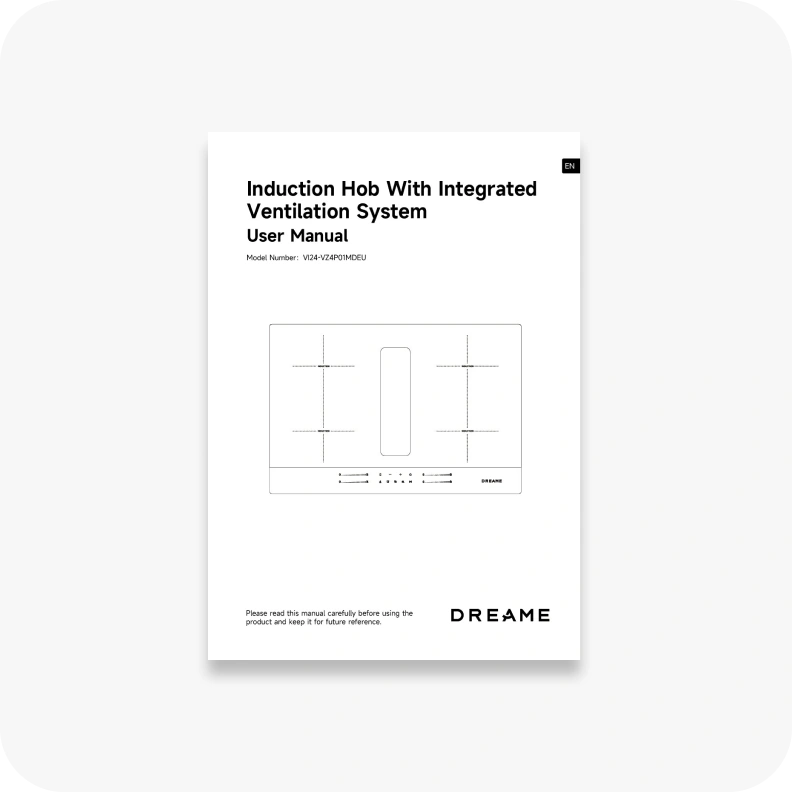

User Manual

x1

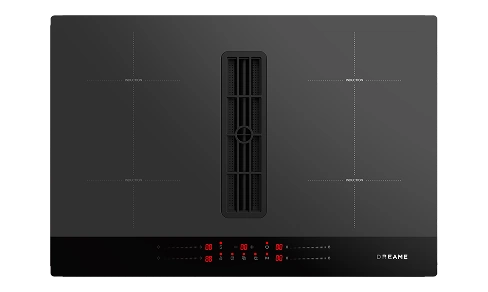

Specifications

Model & Name

VI24-VZ4P01MDEU

Heating Capacity

7200W

Rated Voltage / Frequency

220-240V~, 50-60Hz

Front Left Heating Zone

1.5kW/2.0kW

Rear Left Heating Zone

2.0kW/2.4kW

Front Right Heating Zone

2.0kW/2.4kW

Rear Right Heating Zone

1.5kW/2.0kW

Bridge Heating Zone

2.5kW/3.0kW

Power Adjustment

Slide Control
(9 Power Levels + BOOST)

Noise Level (dB)

67

Energy Efficiency Rating

A++

Max Airflow (m³/h)

650

Timer

99min

Product Dimensions (W x D x H, mm)

770 × 520 × 210

Cut Out Dimensions (W x D, mm)

750 × 500

Specifications

Model & Name

VI24-VZ4P01MDEU

Heating Capacity

7200W

Rated Voltage / Frequency

220-240V~, 50-60Hz

Front Left Heating Zone

1.5kW/2.0kW

Rear Left Heating Zone

2.0kW/2.4kW

Front Right Heating Zone

2.0kW/2.4kW

Rear Right Heating Zone

1.5kW/2.0kW

Bridge Heating Zone

2.5kW/3.0kW

Power Adjustment

Slide Control
(9 Power Levels + BOOST)

Noise Level (dB)

67

Energy Efficiency Rating

A++

Max Airflow (m³/h)

650

Timer

99min

Product Dimensions (W x D x H, mm)

770 × 520 × 210

Cut Out Dimensions (W x D, mm)

750 × 500

FAQ

Induction Hob Mode Selection

After the power is on, select the desired cooking zone first, then adjust the heat level using the slider control. There are 9 power levels, or you can use other available control options.

Can the induction hob operate without cookware?

No. Operating without cookware is not allowed. If the temperature becomes too high, an error code will appear.

Hob Surface Cleaning

After use, allow the surface to cool before cleaning. Wipe with a soft cloth, and if needed, apply a small amount of food-grade detergent to remove stains. Do not use abrasive cleaning tools such as steel wool, as they may scratch the glass surface.

Does the hob surface glass get hot during operation?

Yes. The temperature of the glass surface varies in different areas. The glass near the burners becomes hotter. Do not touch the glass around the burner area directly to avoid burns.

The induction hob does not power on.

Check if there is a power outage in your home.
If not, please contact an authorized service technician for inspection.

The induction hob does not heat.

If the selected cooking zone does not heat up, it may be due to a loose connection or a faulty coil.
Please contact an authorized service technician for assistance.

The induction hob displays error code E0.

This code indicates no cookware is detected. Please place a compatible pot or pan on the cooking zone.

The induction hob displays error code E01 / E02.

The input voltage is too high (>250V) or too low (<180V).
Wait until the voltage stabilizes, then try again, or contact your local power provider.

The induction hob displays error code E3 / E4.

This indicates a temperature sensor fault. Please contact an authorized service technician for on-site inspection.

The induction hob displays error code F3–F5.

This indicates a short or open circuit in the NTC temperature sensor. Please contact an authorized service technician for repair.

Hood Specs Inquiry

Voltage: 220 to 240 V, Max Airflow: 668 m³/h, Noise Level: 67 dB.

Speed Level Adjustment

Following the user manual, after power on, the ventilation level will automatically match and adjust based on the cooking power level

How should I clean the inside of the range hood?

After disconnecting the power, remove the ventilation parts, rinse with water, or wipe away grease and buildup inside with a towel.

Is the range hood noisy during operation?

The product has a noise level of 67 dB. If the sound is merely the normal noise from operation or the airflow during ventilation, it is considered normal. However, if there are abnormal noises, you should check whether any foreign objects have entered the range hood or contact an authorized service technician for inspection.
