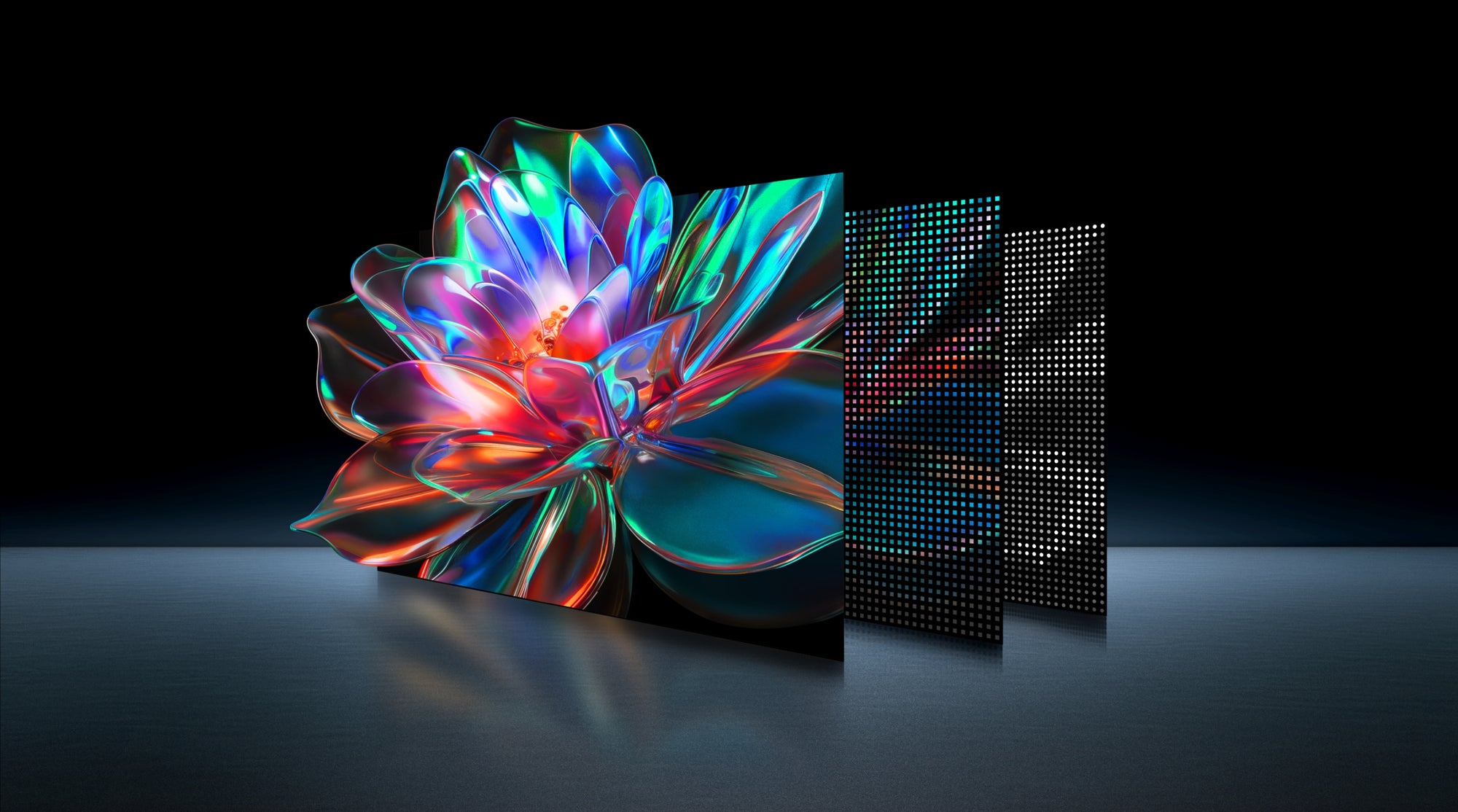

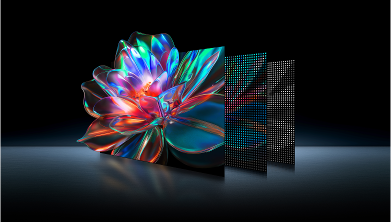

QLED+ with Mini LED
Brighter highlights, deeper blacks
Basic Information | Model Name | 86S100 | 75S100 | 65S100 | 55S100 |

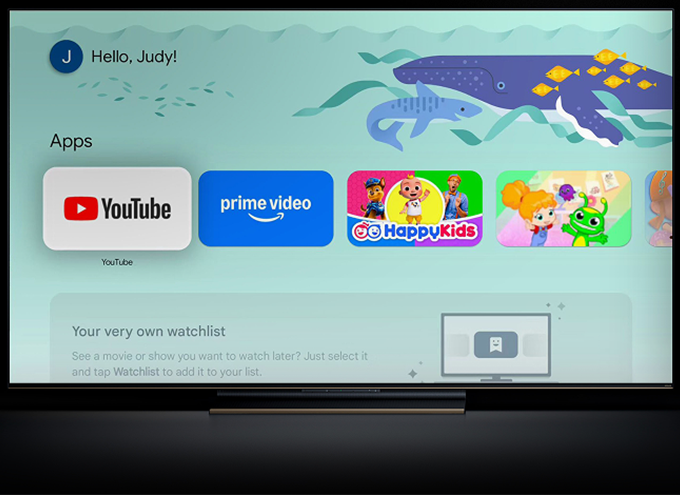

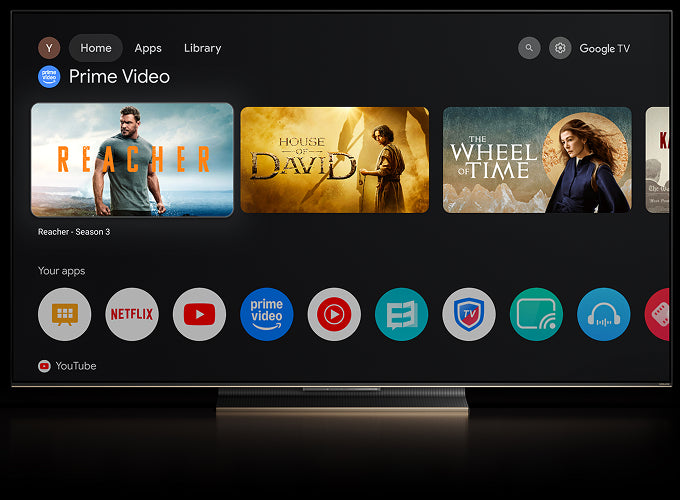

Smart OS | Google TV | Google TV | Google TV | Google TV | |
Screen Size | 86 | 75 | 65 | 55 | |
Product Type | 4K QLED with Mini LED | 4K QLED with Mini LED | 4K QLED with Mini LED | 4K QLED with Mini LED | |
Panel Specification | Resolution | UHD (3840*2160) | UHD (3840*2160) | UHD (3840*2160) | UHD (3840*2160) |
Brightness |
400nits (Typ) 1000nits (Peak) |
400nits (Typ) 600nits (Peak) |
400nits (Typ) 600nits (Peak) |
350nits (Typ) 550nits (Peak) | |
Color Gamut | Wide | Wide | Wide | Wide | |
Refresh Rate | Up to 144Hz | Up to 144Hz | Up to 144Hz | Up to 144Hz | |
Viewing Angle |
178°(H) 178°(V) (Typ.) |
176°(H) 176°(V) (Typ.) |
176°(H) 176°(V) (Typ.) |
176°(H) 176°(V) (Typ.) | |
Brightness Uniformity | 70% (Typ) | 70% (Typ) | 70% (Typ) | 70% (Typ) | |
Response Time Typ. | 8 ms | 8 ms | 8 ms | 8 ms | |
Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
Type of Backlight | Direct-lit (OD18) | Direct-lit (OD18) | Direct-lit (OD18) | Direct-lit (OD18) | |
Major Features |
Digital TV Reception | DVB-C/T/T2/S/S2 | DVB-C/T/T2/S/S2 | DVB-C/T/T2/S/S2 | DVB-C/T/T2/S/S2 |
CPU | A73*4 | A73*4 | A73*4 | A73*4 | |
GPU | Mail G52 | Mail G52 | Mail G52 | Mail G52 | |
eMMC Flash Storage Capacity | 32G | 32G | 32G | 32G | |
DDR RAM Capacity | 3G | 3G | 3G | 3G | |
HDR (High Dynamic Range) |
HDR10+ / HDR10 / HLG Dolby Vision |
HDR10+ / HDR10 / HLG Dolby Vision |
HDR10+ / HDR10 / HLG Dolby Vision |
HDR10+ / HDR10 / HLG Dolby Vision | |
Dolby Audio/DBX-TV | Yes/No | Yes/No | Yes/No | Yes/No | |
Dolby Atmos | Yes | Yes | Yes | Yes | |
Far-Field Voice Interaction | Yes | Yes | Yes | Yes | |

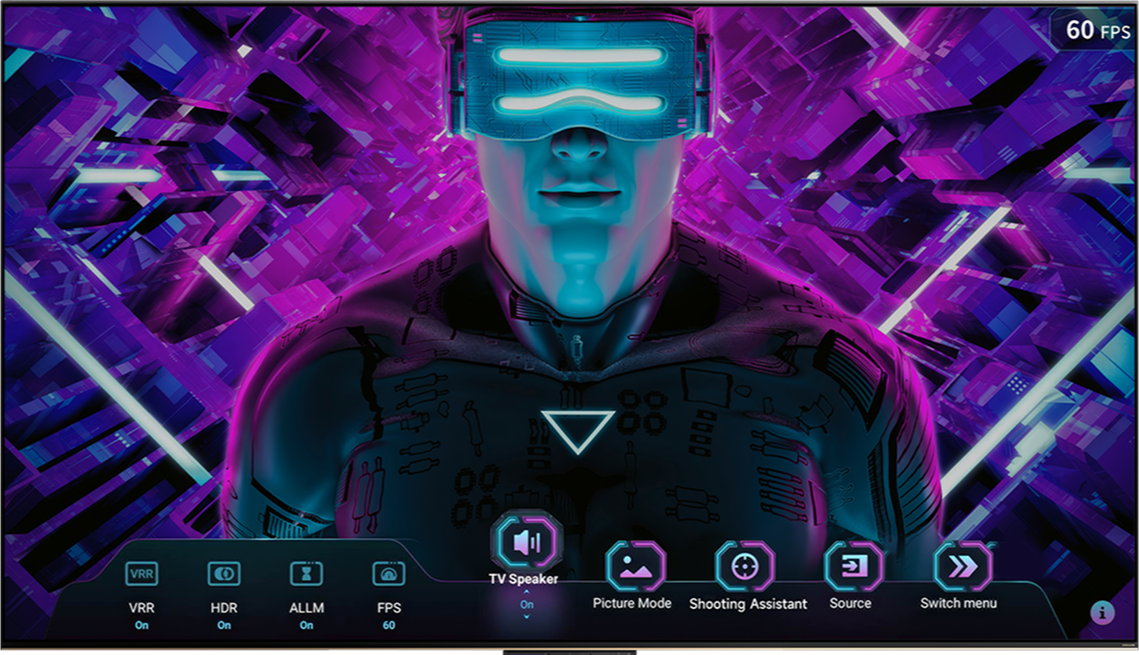

Game Mode | Yes | Yes | Yes | Yes | |
WiFi Version | 802.11a / b / g / n / ac | 802.11a / b / g / n / ac | 802.11a / b / g / n / ac | 802.11a / b / g / n / ac | |
Wi-Fi Band-Single or Dual | Dual (2.4G / 5G) | Dual (2.4G / 5G) | Dual (2.4G / 5G) | Dual (2.4G / 5G) | |
Bluetooth and Bluetooth Version | Yes / BT 5.1 | Yes / BT 5.1 | Yes / BT 5.1 | Yes / BT 5.1 | |
Auto power output | 70W | 70W | 70W | 70W | |
Number of Speaker Drivers | 11 units | 11 units | 11 units | 11 units | |
Subwoofer | Yes | Yes | Yes | Yes | |
Connectivity | RF Input (Antenna) | 2 | 2 | 2 | 2 |
Composite (AV) | 1 | 1 | 1 | 1 | |
HDMI | 3 | 3 | 3 | 3 | |
USB | 2 | 2 | 2 | 2 | |
Earphone Jack | 1 | 1 | 1 | 1 | |
AV Output | No | No | No | No | |
Ethernet Input | 1 | 1 | 1 | 1 | |
SPDIF Output (Optical/Coaxial) | 1 (Optical) | 1 (Optical) | 1 (Optical) | 1 (Optical) | |
VGA/RS-232 | No | No | No | No | |
Power Supply | Power Supply (Voltage, Hz) | 100-240V | 100-240V | 100-240V | 100-240V |
Standby Power Consumption | <0.5W | <0.5W | <0.5W | <0.5W | |
Power Consumption | 390W | 280W | 240W | 180W | |
Accessories (Included) |
Warranty Info Quick Start Guide (QSG) | 1 / 1 | 1 / 1 | 1 / 1 | 1 / 1 |
Remote Control (Type/Model) | Voice Remote / 9A | Voice Remote / 9A | Voice Remote / 9A | Voice Remote / 9A | |
Remote Control Battery | Two "AAA" | Two "AAA" | Two "AAA" | Two "AAA" | |
Mini AV Cable | Yes | Yes | Yes | Yes | |

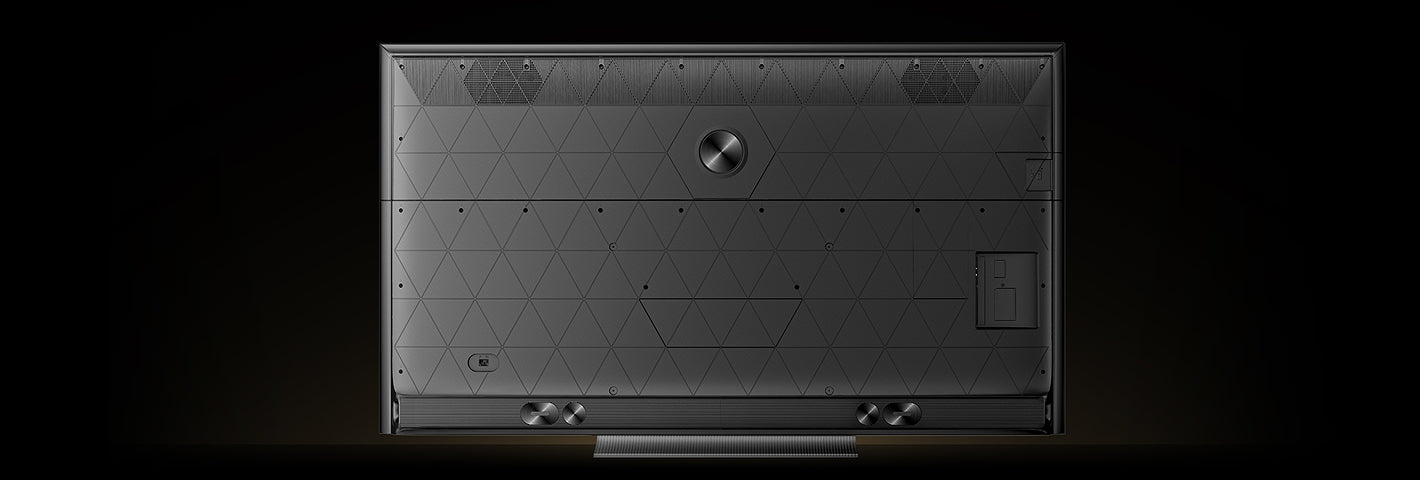

VESA Mounting Specifications |
VESA Hole Pattern (H*V) | 600*400 | 400*300 | 400*200 | 300*200 |
Package Information | Dimensions with stand (mm) | 1924.8*387.5*1160.1 | 1674.5*371*1024 | 1452.5*312.3*897.3 | 1233*261.9*763.2 |
Dimensions without stand (mm) | 1924.8*95.9*1109.4 | 1674.5*87.3*973.4 | 1452.5*86.8*845.9 | 1233*87.3*721.6 | |
Carton box dimensions (mm) | 2050*260*1290 | 1790*224*1178 | 1600*185*1048 | 1335*160*868 | |
Net weight (with stand without stand)(KG) | 46.7/44.2 | 33.8/32.3 | 24.3/23 | 16.2/15.4 | |
Gross weight (KG) | 59.5 | 44.2 | 31.5 | 19.2 |
